Bitumen Emulsion Plant 06F Type
Request a Quote
Asphalt Emulsifier, Road Paving Asphalt Line, we are offering several types of asphalt emulsion machines

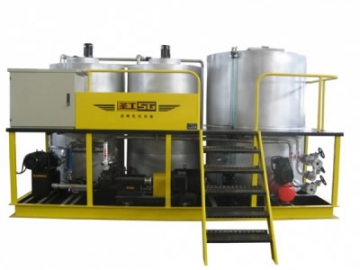

As one type of asphalt emulsifying equipment, this bitumen emulsion plant GYRY06F is not equipped with a heating system. The plant is suitable for producing emulsified asphalt with various specifications to meet the requirements regarding different construction technologies.
Parameters of Bitumen Emulsion Plant 06F Type:| No | Parameter | Unit | Reference Details | Reference |
| 1 | Capacity | t/h | 6 | |
| 2 | Maximum Capacitance | kw | 21 | |
| 3 | Rotation Speed of Emulsifying Machine | rpm | 2930 | |
| 4 | Power of Emulsifying Machine | kw | 15 | |
| 5 | Fineness of Emulsified Asphalt | μm | ≤5 | 85% |
| 6 | Volume of Cleaning Water Tank | m³ | 3 | 1 |
| 7 | Volume of Emulsified Water Tank | m³ | 1.5 | 2 |
| 8 | Weight | t | 3.5 | |
| 9 | Dimension | mm | 3990 × 2150 × 2150 | L×W×H |
- For convenience of delivery, a modular design is adopted and all components are fixed on one base frame.
- Water furnace or heating system for coiled tubing containing heat conduction oil is adopted for convenience of heating on site.
- With emulsion fineness≤5μm, colloid mill adopts stainless steel for wear resistance and corrosion resistance.

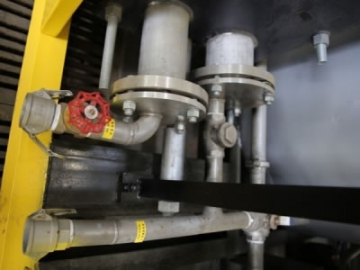

- Variable-frequency drive can adjust the rotation speed of asphalt pump, and the flow rate of emulsified water (Displayed by the flow meter) is controlled by the valve. As a result, the operator can accurately control the content of asphalt in emulsified asphalt.
- The heat conduction oil system is equipped with interface for heating the clean water tank and preheating each type of pump casing before production.
- All materials contacting the emulsion are stainless steel for corrosion resistance. Therefore, the bitumen emulsion plant is suitable for producing each type of emulsified asphalt.
