MZ-9750FD EMI wave absorbing tape offers high permeability, high saturation magnetic induction, good toughness, thin thickness and low performance loss, is suitable for smart phone, smart watch, tablet computer, etc.

55mm*50mm/PCS, packaging dimension L380mm*W380mm*T350mm, 30PCS per package.

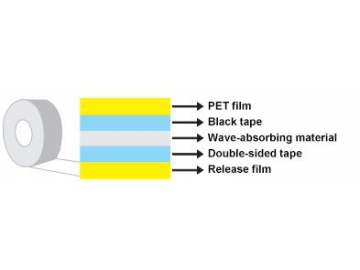

Product Structure

PET film
Black tape
Wave-absorbing material
Double-sided tape
Release film

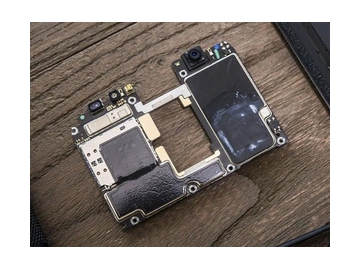

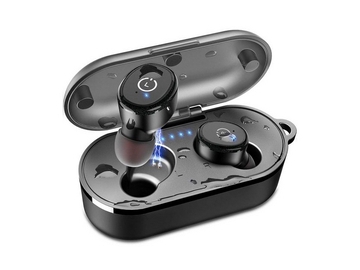

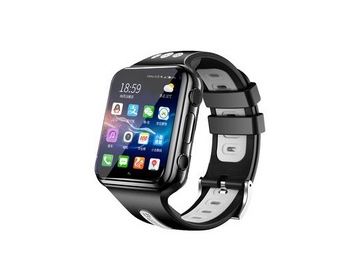

Applications
Technical Parameter
Property Value Property Value
Substrate Wave-absorbing material Product model MZ-9750FD
Suitable temperature -40~110℃ Black tape thickness 0.005mm
Saturated magnetic induction density 1.23T/ 1.56T Wave-absorbing material thickness 0.038mm
Permeability 100,000-130,000 Acrylic adhesive thickness 0.005mm
Adhesion (gf / 25mm) 500g Total thickness 0.048mm
Initial adhesion (J.DOW method) 0.8 Release film thickness 0.050mm
Property Testing method Requirements
High-temperature storage 1. Temperature: 85±5℃
2. Time: 96hrs
3. Start test after 60min at room temperature
1. No defects in appearances
2. Magnetic permeability change: ± 15%
Cryogenic storage 1. Temperature: -40±5℃
2. Time:96hrs
3. Start test after 60min at room temperature
1. No defects in appearances
2. Magnetic permeability change: ± 15%
Heat and humid aging 1. Humidity: 85%RH
2. Temperature: 85±3℃
3. Time: 96hrs 3. Start test after 60min at room temperature
1. No defects in appearance (no oxidation)
2. Magnetic permeability change: ± 15%
