G80 Alloy Steel Shackles
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with EN818-2.G80 chains which can meet the standard
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: Red RAL3020 / Yellow RAL1003.
● It can not be used beyond the working load limit.

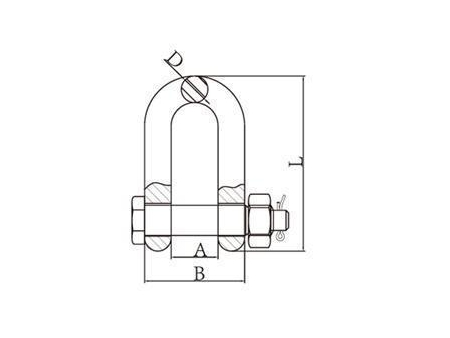

| Item Code | Weight (kg) | Working Load Limit/t | Breaking Load/t | A±1.2 | B±2 | D±0.5 | L±2 |
| 8-SLR049-7/8 | 0.14 | 2 | 8 | 15 | 32 | 9 | 56 |
| 8-SLR049-10 | 0.274 | 3.15 | 12.6 | 21 | 43 | 11.5 | 71 |
| 8-SLR049-13 | 0.5 | 5.3 | 21.2 | 25 | 51 | 14.5 | 91 |
| 8-SLR049-16 | 0.89 | 8 | 32 | 30 | 63 | 17.5 | 111 |
Ultimate load is 4 times the Working Load Limit.
Normal mark: 10-8 WLL3.15T CE SLR BATCH NUMBER
