Ultrasonic Tape Cutting Machine

Ultrasonic Tape Cutting Machine
Ultrasonic Tape Cutting Machine
Ultrasonic Tape Cutting Machine
Request a Quote

Application

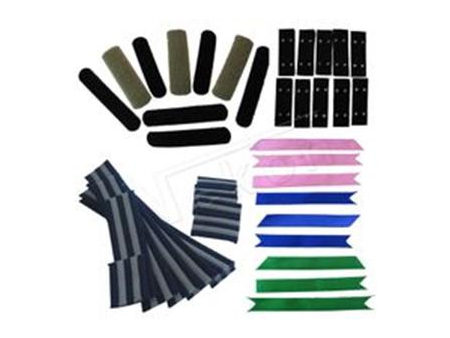

The ultrasonic tape cutting machine can cut all kinds of woven tapes, including Velcro, shoelaces, zippers, labels, as well as various leather tapes. The equipment can change the shearing mold freely, able to cut straight edges, bevel edges, dovetail edges, round edges, as well as punch hole etc. In addition, the shear mold is simple and convenient for installation.

Parameters
Power supply 220V
Input power 800W
Outline size 1200*600*1350mm
Weight 150KG
Working speed 60-100 times/min
Cutting length 1~99cm
Cutting width 1~8cm
Features
  • The ultrasonic tape cutting machine has a shearing speed up to 100 times per minute.
  • PLC touchscreen operation, automatic counting function.
  • Utilizing the instant high temperature of the ultrasound for the fusion of cutting interface, there are no coarse sides, coking, or discoloration.
  • Automatic cutting, labor saving, requires only one operator for several machines

Index
fabric cutting, industrial garment cutter, clothing cutting, sewing equipment
