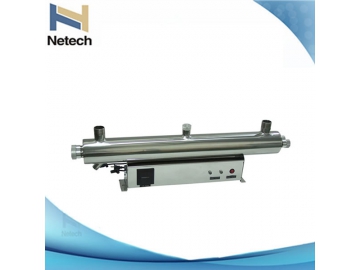

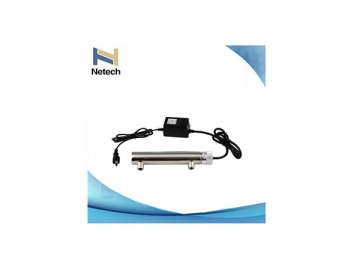

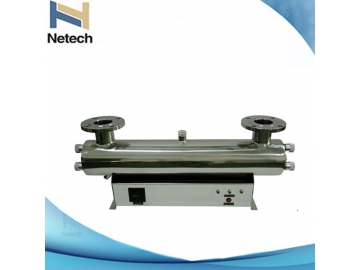

UV Water Clean
High efficiency UV water clean for water treatment system
This UV water clean clean drinking water, waste water, swimming pools and spas, and irrigation water as well as water in cooling towers and RO systems and water used in the electronics industry, effectively improving living and drinking water in public and residential places. This water purifier kills 99.9% of bacteria within 1 to 2 seconds using a broad UV ray spectrum. Meeting industry standards of drinking water, the environmentally-friendly purifier doesn't contribute to pollution as no extra chemicals are added.
Features
1. Excellent water flow rate
0.44-2200GPM (0.1-500ton/hr).
2. Long warranty
10 year warranty for stainless steel casing, electrical components have a 1 year warranty.
3. Quality material
SS304 or SS316L stainless steel for reaction chamber. All connections are smooth without corners.
4. UV intensive chamber
Internal and external polishing mirror chamber is effectively clean.
5. Withstands pressure
The chamber has been tested in both air and water pressures,withstanding 0.8 Mpa, and fully prevents water from leaking.
6. Mercury lamp
This imported high-strength mercury lamp with a lamp tube from Hanovia has a service life of 9000-13000 hrs and efficient electron ballasts to provide a clean rate up to 99.99%.
7. Meets industry standards
This microbial water treatment equipment purifies water to meet living and drinking water standards of CJ/T204-2000.
Packing
Our sturdy carton packaging is padded with foam and double layers to protect products from damage during shipment.
| Model | Water flow (T/Hr) | Power (W) | Size (mm) | Water input & ouput size | Max. pressure (Mpa) |
| 0.1 | 8 | 250×48×65 | 1/4″ | 0.8 | |
| 0.2 | 10 | 295×60×80 | 1/4″ | ||
| 0.5 | 14 | 370×60×80 | 1/2″ | ||
| 1 | 17 | 450×73×110 | 1/2″ | ||
| 1.3 | 23 | 520×73×110 | 3/4″ | ||
| 1.8 | 28 | 650×73×110 | 3/4″ | ||
| 2.7 | 40 | 950×73×110 | 1″ | ||
| 3 | 40×1 | 950×125×250 | 1″ | ||
| 5 | 40×2 | 950×138×280 | 1.2″ | ||
| 8 | 40×3 | 950×170×310 | 1.5″ | ||
| 12 | 40×4 | 950×195×335 | 2″ | ||
| 15 | 40×5 | 950×195×335 | 2″ | ||
| 20 | 80×3 | 950×205×405 | 2.5″ | ||
| 25 | 80×4 | 950×275×465 | 2.5″ | ||
| 30 | 120×3 | 1250×275×545 | 3″ | ||
| 40 | 120×4 | 1250×275×550 | 3″ | ||
| 50 | 120×5 | 1250×275×550 | 4″ | ||
| 60 | 150×5 | 1650×280×495 | 4″ | ||
| 70 | 150×6 | 1650×305×520 | 5″ | ||
| 80 | 150×7 | 1650×305×520 | 5″ | ||
| 100 | 150×8 | 1650×335×550 | 6″ | ||
| 125 | 150×10 | 1650×360×575 | 6″ | ||
| 150 | 150×12 | 1650×385×600 | 8″ | ||
| 200 | 150×16 | 1650×460×675 | 8″ | ||
| 500 | 240×25 | 1650×650×750 | DN300 |
