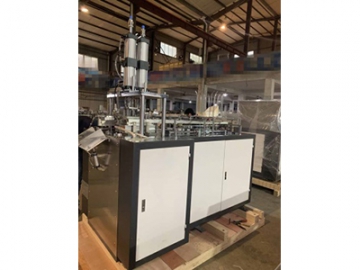

ZX-RB food box forming machine is a fully automatic paper box making machine that is widely used for manufacturing disposable paper lunch boxes, paper platters, paper hot food boxes, and other PE coated paper food containers. It adopts an independent hot air generator for single-layer PE coating.


This paper box making machine can carry out processes of automatic feeding, heating (utilizing hot air generator), forming (four-corner bonding), and automatic collection. Based on microcomputer control and mechanical transmission, this food box machine can guarantee stable running, high production speed, energy saving and easy operation.

Technical Specifications
Model ZX-RB
Machine speed 30-60pcs/min (Actual production according to product size)
Max. box size 480×480mm
Power supply 380V 50HZ (changeable)
Applicable material 200-400g/m2 PE (PE coated paper)
Total power 3kW
Machine weight 0.8T
Machine dimensions 1550×1350×1800mm
Air supply requirements Air pressure 0.4-0.5Mpa (compressor is required)
Details

Tags cardboard packaging automation automatic carton thermoforming machine paper box folder gluer carton gluing machine
