EMC03 X5070 Carbide Square End Mill, 4 Flutes
Request a Quote
- Designed to machine tool steel, alloy steel, mold steel and other materials with hardness up to HRC70
- Oerlikon Balzers coating offers superior hardness and heat resistance
- Increased feed rates

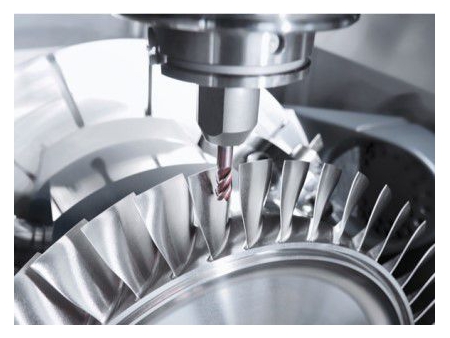

Application
Product Specifications
| Coating | AITISIN | HRC | HRC50/65/70 |
| Helix Angle | 45° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
X5070 Carbide Square End Mills, 4 Flutes （UNT-EMC03）
Unit: mm | UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | Effective Length L3 | O.A.L. L2 | Flutes |
| EMC030104 | 1.0 | 4 | 2 | 3 | 50 | 4 |
| EMC030154 | 1.5 | 4 | 3 | 4 | 50 | 4 |
| EMC030204 | 2.0 | 4 | 4 | 6 | 50 | 4 |
| EMC030254 | 2.5 | 4 | 5 | 6 | 50 | 4 |
| EMC030304 | 3.0 | 4 | 6 | 9 | 50 | 4 |
| EMC030354 | 3.5 | 4 | 7 | 10 | 50 | 4 |
| EMC030404 | 4.0 | 4 | 8 | 12 | 50 | 4 |
| EMC030106 | 1.0 | 6 | 2 | 3 | 60 | 4 |
| EMC030156 | 1.5 | 6 | 3 | 4 | 60 | 4 |
| EMC030206 | 2.0 | 6 | 4 | 6 | 60 | 4 |
| EMC030256 | 2.5 | 6 | 5 | 6 | 60 | 4 |
| EMC030306 | 3.0 | 6 | 6 | 9 | 60 | 4 |
| EMC030356 | 3.5 | 6 | 7 | 10 | 60 | 4 |
| EMC030406 | 4.0 | 6 | 8 | 12 | 60 | 4 |
| EMC030450 | 4.5 | 6 | 9 | 13 | 60 | 4 |
| EMC030500 | 5.0 | 6 | 10 | 13 | 60 | 4 |
| EMC030600 | 6.0 | 6 | 12 | 16 | 60 | 4 |
| EMC030700 | 7.0 | 8 | 14 | 20 | 60 | 4 |
| EMC030800 | 8.0 | 8 | 16 | 20 | 60 | 4 |
| EMC030900 | 9.0 | 10 | 18 | 25 | 75 | 4 |
| EMC031000 | 10.0 | 10 | 20 | 25 | 75 | 4 |
| EMC031100 | 11.0 | 12 | 22 | 30 | 75 | 4 |
| EMC031200 | 12.0 | 12 | 24 | 30 | 72 | 4 |
| EMC031400 | 14.0 | 14 | 28 | 35 | 100 | 4 |
| EMC031600 | 16.0 | 16 | 32 | 40 | 100 | 4 |
| EMC031800 | 18.0 | 18 | 36 | 40 | 100 | 4 |
| EMC032000 | 20.0 | 20 | 40 | 45 | 100 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
