This product has been discontinued and removed from our shelves.

Rotation post holder could rotate, and is used with optical mirror mounts and optical posts for the scene where the light path is constructed by the optical mirror mounts.

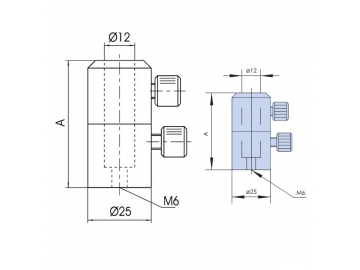

Parameter table of rotation post holder
Model WN01RP102
Center hole diameter 12 mm
A 102 mm
Weight 0.12 kg
Features of rotation post holder
  • The rotation post holder could hold the holder rotating 360° around the post axis without changing the position of the other parts.
  • The rotating part and the fixed part is connected by precise bearing, ensuring flexible rotation and high precision.
  • The center hole has a precision V-slot, which wouldn't change the position of other parts when adjusting the height of the holder, stable locking effect.
  • The holder can be fixed in V-shaped groove when not locking due to the design of steel ball with flexible front-end.
  • The holder and the rotation part can be firmly locked.
  • M6 thread holes are on the bottom of rotation post holder, easy to connect with other optical base.
