Application

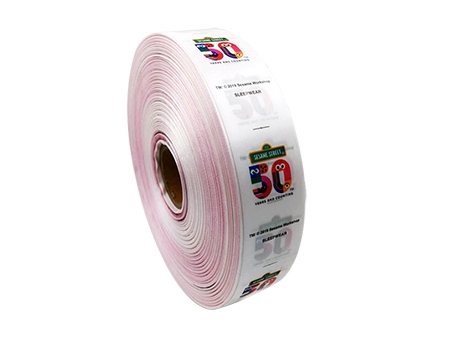

The ultrasonic ribbon slitting machine is mainly suitable for the slitting of fabric tapes and label cloths (mark), as well as tape fabrics of polyester, nylon, cotton, and artificial fabric.

Parameters
Power supply 220V
Input power 3KW
Max. unwinding diameter 300mm
Max. unwinding width 400mm
Min. slitting width 10mm
Max. slitting speed 30m/min
Diameter of air shaft 3inch
Outline size(length×width×height) 1500*1500*1400mm
Net weight 600KG
Features
  • Made of aluminum alloy, the equipment has high stability during high-speed operation, effectively improving the mechanical durability and the service life.
  • The slitting speed is controlled by the converter motor, and the slitting width can be arbitrarily adjusted with a minimum of 10mm.
  • The slit cloth is smooth and neat, and the tension of rewinding fabrics is controlled by the magnetic powder clutch so that the tightness is freely adjustable.
  • The feeding tension is controlled using the magnetic powder so that the feeding is uniform, thus improving the overall smoothness and neatness of cuts.
  • Ultrasonic cutting, no coarse sides, no coking, no discoloration
  • The ultrasonic ribbon slitting machine uses an air shaft for rewinding and unwinding, and is equipped with automatic correction device.
  • Equipped with a meter counter with metering function, the machine can automatically stop at a fixed length.
