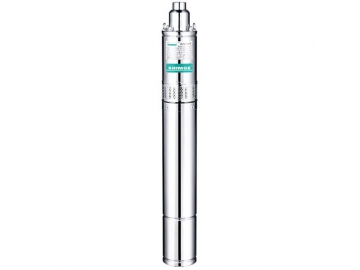

Single Screw Pump
Request a Quote
The single screw pump takes advantage of the rotating screw axis to achieve self-priming, which is ideal for transferring of a variety of fluids. The operating pressure ranges from 3.4-340 N/cm2, when the flow rate reaches 18600cm3/min. Due to the low inertia of inner rotating parts in the pump, it is excellent at maintaining a high speed. The continuous uniform flow features a low vibration and low noise.
- stator
- rotator
- transmission shaft
-

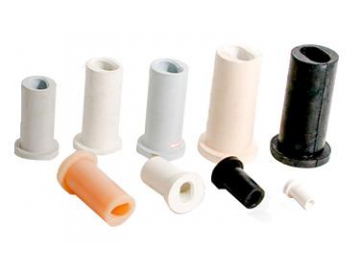

Made of new materials, the stator features corrosion resistance, aging resistance, high temperature resistance and flame resistance.
-

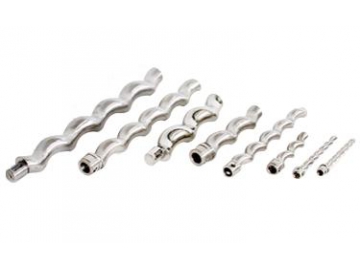

Made of sanitary stainless steel, the rotor carries out the liquefaction process to become durable and corrosion resistant.
Model | Power (kw) | Speed (r/min ) | Flow Rate (m³/h ) | Inlet and Outlet (mm) |
G10-1 | 0.37 | 1400 | 0.5 | DN20 |
G15-1 | 0.55 | 960 | 1 | DN25 |
G20-1 | 0.75 | 960 | 1.5 | DN32 |
G25-1 | 1.1 | 960 | 2 | DN32 |
G30-1 | 1.5 | 960 | 3 | DN40 |
G35-1 | 2.2 | 960 | 5 | DN50 |
G40-1 | 3 | 960 | 7 | DN50 |
2.2 | 720 | 5.5 | DN50 | |
G45-1 | 4 | 960 | 9 | DN50 |
3 | 720 | 7 | DN50 | |
G50-1 | 5.5 | 960 | 13 | DN65 |
4 | 720 | 10 | DN65 | |
G55-1 | 7.5 | 960 | 18 | DN65 |
5.5 | 720 | 13 | DN65 | |
G65-1 | 11 | 720 | 30 | DN80 |
G85-1 | 15 | 720 | 60 | DN100 |
