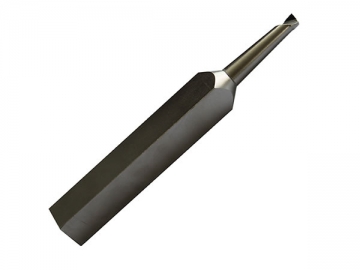

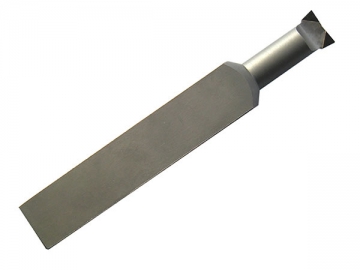

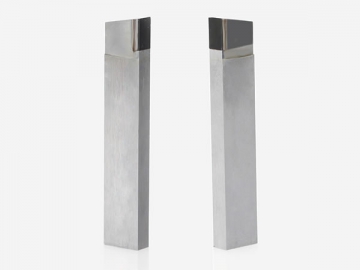

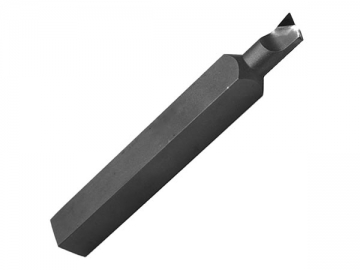

PCD/PCBN Boring Tools
Features of PCD/PCBN Boring Tool
1. The PCD/PCBN boring cutter has good performance and stability, good abrasive resistance and long service life.
2. It can guarantee high processing precision and high work efficiency.
3. The PCD/PCBN boring tool can be used repeatedly so that it can save your cost.
Technical Specifications
Drawing of PCD/PCBN Boring Tool
| Dimension (mm) | |||||||||
| Kr° | W1 | H1 | H | W/D | L | d | L1 | Er° | R |
| 95 | 6 | 10 | 20 | 20 | 120 | 10 | 30 | 70 | 0.4 |
| 95 | 6 | 12.5 | 25 | 25 | 120 | 10 | 30 | 80 | 0.4 |
| 95 | 9.5 | 10 | 20 | D20 | 120 | 16 | 30 | 70 | 0.4 |
| 95 | 9.5 | 10 | 20 | D20 | 120 | 16 | 30 | 90 | 0.4 |
Material
The tool bit of the boring tool uses premium PCBN or PCD blanks. The cutter arbor uses high quality tungsten carbide and tool steel.
Application

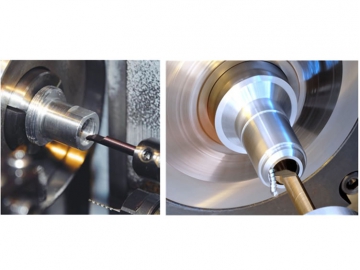

The PCD boring tool applies to different materials including copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal materials. It can be used in the boring and precision processing of various products with different specifications, such as the processing of cast aluminum alloy pistons.
The PCBN boring tool is used to bore and precisely process different materials, such as hardened steel, hard cast iron, grey cast iron, and iron series metal.
Packaging
The PCD/PCBN boring tool can be packed with plastic box.
Quality Control
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.
ODM/OEM Service
We can manufacture the PCD/PCBN boring cutters in various specifications according to the customer requirements.
Contact:
We are a professional PCD/PCBN boring tool manufacturer based in China. Our company also provides PCD reamer, PCBN inserts, diamond glass cutting tools, diamond die blanks, CVD diamond tool, and much more.
