VB40B Big Bus Air Conditioner Manufacturer

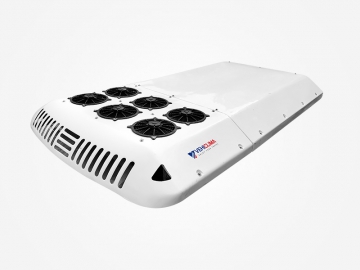

VB40B Big Bus Air Conditioner

Request a Quote

About Us: http://auto-airconditioner.com/4-5-5-city-bus-air-conditioner.html

Features

The roof-mount layout makes the big bus air conditioner convenient to open and overhaul.
The fashionable streamline design perfectly integrates with the bus body.
With its high quality fiberglass epoxy resin case and cover, the big bus air conditioner has high strength and high resistance to vibration and corrosion.
It has abundant cooling capacity, low noise and lower power consumption.
World-brands key parts assure the system's reliability and stability.
The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
The big bus air conditioner can be used on 10-10.5m buses.

Specifications

Model		VB40B
Standard Cooling Capacity		40kW (34400Kcal/h, 137600 Btu/h)
Max Cooling Capacity		44kW (37840 Kcal/h, 151360 Btu/h)
Refrigerant		HFCR134a
Compressor	Model	4NFCY
Compressor	displacement	647cc
Evaporator	Type	Cooper Tube & Aluminium fins
	Blower Type	Double Axle Centrifugal Flow
	Blower Quantity	8
	Blower Output	8000 m3/h
Condenser	Type	Aluminum multi-flow coil
	Fan Type	Axial Flow
	Fan Quantity	6
	Fan Output	12000 m3/h
Control System	Bus Interior Temperature	16℃-27℃ Adjustable
	Defrosting Protection	2℃
	High Pressure Protection	2.5Mpa
	Low Pressure Protection	0.05Mpa
Fresh Air Exchange Rate		25%
External Dimension		3370×1920×269mm
Total current		≤118A(24V)
Applying Buses		12m city bus

Note: One year (12 months) warranty period since the date the products have been installed.

VehiClima Industry is a professional big bus air conditioner manufacturer in China. In addition to bus air conditioner, we also provide other vehicle air conditioning products, such as military vehicle air conditioner, cabinet air conditioner, engineering vehicle air conditioner, transport refrigeration unit, and more.
