EMC10 X5070 Carbide 4 Flute Radius End Mill, Long Length
Request a Quote
About Us: http://metalworking-tool.com/4-8-emc10-x5070-carbide-4-flute-radius-end-mills-long-length.html
- Designed to machine tool steel, alloy steel, mold steel and other materials with hardness up to HRC70
- Oerlikon Balzers coating offers superior hardness and high performance
- Various corner radius end mills are available from 0.02 mm to 5.0mm corner radius
- Easy installation
- Used for profile milling, center cutting, rough milling

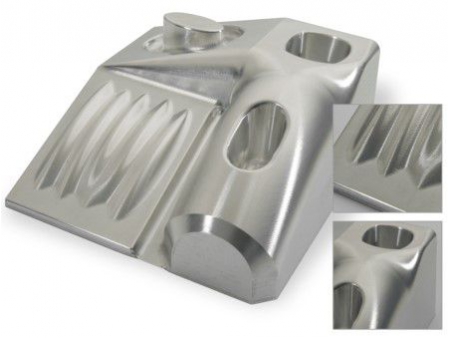

Application
Product Specifications
Coating | AITISIN | HRC | HRC50/65/70 |
Helix Angle | 45° | Shank | Cylindrical H6 |
Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
X5070 Carbide 4 Flute Radius End Mills, Long Length(UNT-EMC10)
Unit: mm UNT EDP # Click to Order | Corner Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | Effective Length L3 | O.A.L. L2 | Flutes |
EMC100203 | R0.3 | 2.0 | 6 | 4 | 8 | 75 | 4 |
EMC100303 | R0.3 | 3.0 | 6 | 6 | 12 | 75 | 4 |
EMC100305 | R0.5 | 3.0 | 6 | 6 | 12 | 75 | 4 |
EMC100403 | R0.3 | 4.0 | 6 | 8 | 20 | 75 | 4 |
EMC100405 | R0.5 | 4.0 | 6 | 8 | 20 | 75 | 4 |
EMC100605 | R0.5 | 6.0 | 6 | 12 | 20 | 100 | 4 |
EMC100610 | R1.0 | 6.0 | 6 | 12 | 20 | 100 | 4 |
EMC100615 | R1.5 | 6.0 | 6 | 12 | 20 | 100 | 4 |
EMC100620 | R2.0 | 6.0 | 6 | 16 | 20 | 100 | 4 |
EMC100805 | R0.5 | 8.0 | 8 | 16 | 25 | 100 | 4 |
EMC100810 | R1.0 | 8.0 | 8 | 16 | 25 | 100 | 4 |
EMC100815 | R1.5 | 8.0 | 8 | 16 | 25 | 100 | 4 |
EMC108020 | R2.0 | 8.0 | 8 | 16 | 25 | 100 | 4 |
EMC101005 | R0.5 | 10.0 | 10 | 20 | 30 | 100 | 4 |
EMC101010 | R1.0 | 10.0 | 10 | 20 | 30 | 100 | 4 |
EMC101015 | R1.5 | 10.0 | 10 | 20 | 30 | 100 | 4 |
EMC101020 | R2.0 | 10.0 | 10 | 20 | 30 | 100 | 4 |
EMC101030 | R3.0 | 10.0 | 10 | 24 | 30 | 100 | 4 |
EMC101205 | R0.5 | 12.0 | 12 | 24 | 35 | 100 | 4 |
EMC101210 | R1.0 | 12.0 | 12 | 24 | 35 | 100 | 4 |
EMC101215 | R1.5 | 12.0 | 12 | 24 | 35 | 100 | 4 |
EMC101220 | R2.0 | 12.0 | 12 | 24 | 35 | 100 | 4 |
EMC101230 | R3.0 | 12.0 | 12 | 24 | 35 | 100 | 4 |
EMC101605 | R0.5 | 16.0 | 16 | 32 | 45 | 150 | 4 |
EMC101610 | R1.0 | 16.0 | 16 | 32 | 45 | 150 | 4 |
EMC101615 | R1.5 | 16.0 | 16 | 32 | 45 | 150 | 4 |
EMC101620 | R2.0 | 16.0 | 16 | 32 | 45 | 150 | 4 |
EMC101630 | R3.0 | 16.0 | 16 | 32 | 45 | 150 | 4 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
