Carpet Tufting Machine
Production of Level Loop Pile and Level Cut Pile Carpets
Wuding(WDCM) has two basic types of carpet tufting machine to produce single-color level loop pile carpet and level cut pile carpet respectively. By using these carpet making machines, all of the loops or cut piles are the same height in the carpet, creating a uniform look. The working width of these tufting machines can reach 4100mm or even 5100mm, and the running speed is up to 1100rpm. Pile yarns and backing cloth are fed to tufting machine using servo motor, and the process can be easily controlled via touch screen with digital display, providing reliable and stable running. The machine-tufted carpets and rugs are featured by smooth and even surface with velvety finish which is durable and easy to maintain, and can be widely used in a variety of household and commercial venues, as well as vehicles.

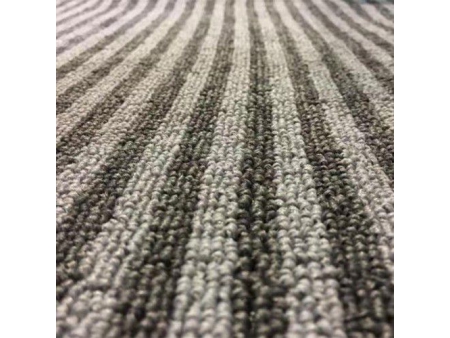

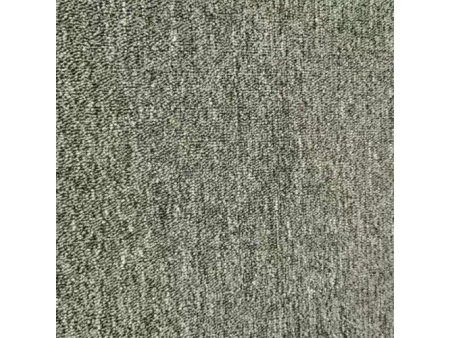

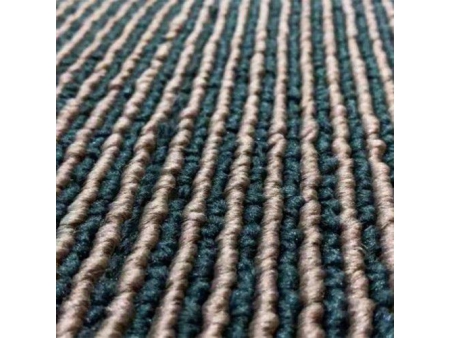

- Level Loop Pile Carpet
- Level Loop Pile Carpet
- Level Loop Pile Carpet

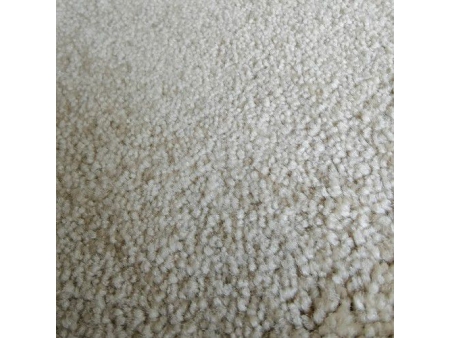

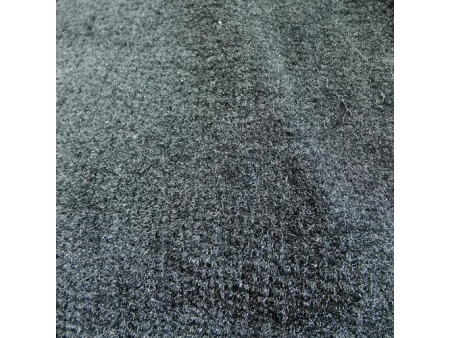

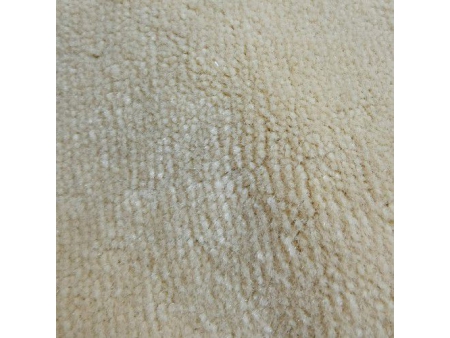

- Cut Pile Carpet
- Cut Pile Carpet
- Cut Pile Carpet
Since these two types of tufting machine make carpets with only one color, many carpet manufacturers add carpet dyeing machine or printing equipment for afterwards dyeing and printing to produce various textured and patterned carpets and rugs. You can also see our COLORDOT tufting machine which can produce patterned carpets with multiple colors.
Gauge | 5/64 inch | 1/10 inch | 1/8 inch |
Motor power | 11kW*2(2m) 15kW*2(4m) | 11kW*2(2m) 15kW*2(4m) | 11kW*2(2m) 15kW*2(4m) |
Pile height | Loop pile: 3-7mm Cut pile: 3-6mm | Loop pile: 3-7mm Cut pile: 5-12mm | Loop pile: 3-7mm Cut pile: 5-12mm |
Mechanical speed | Loop pile: 700-1100rpm Cut pile: 500-800rpm | Loop pile: 700-1100rpm Cut pile: 500-800rpm | Loop pile: 700-1100rpm Cut pile: 500-800rpm |
