Brief Introduction on Semi-auto Reheat Stretch Blow Molding Machines
1. The reheat stretch blow molding machine is designed according to CE standard.
2. Accurate and stable parameter control for the adoption of microcomputer controlling system.
3. Simple and safety operation; and only one operator is needed.

Applications of Semi-auto Reheat Stretch Blow Molding Machines

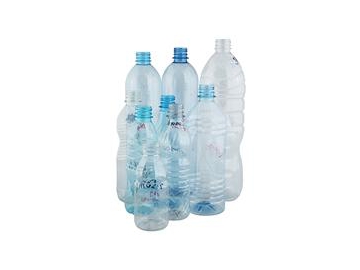

JND Semi-auto Reheat Stretch Blow Molding Machine is suitable for manufacturing carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.

Technical Parameters:
Model JND-880
Clamping Force 80KN
Number of Cavities 2
Theoretical Output 0.5L:880BPH
Mould Open Stroke 150mm
Max. Mould Thickness 200mm
Space Between Tie Bars 340*500mm
Electrical System
Voltage Standard 380V/3PH/50HZ or special order
Total Power(Full Loaded) 7kw
Container
Max. Container Volume 0.1-2.5L(2cav)
Max. Container Diameter 110mm
Max. Container Height 360mm
Auxiliary System
Low Air compressor 8-10Bar
High Air compressor 30Bar
Dimension & Weight (L×W×H)
Blow molding machine 1500*600*1750mm
Preform Auto loader 1800*630*1380mm
Net Weight 0.82Ton
Model JND-880B
Clamping Force 120KN
Number of Cavities 1 Cavity
Theoretical Output 5L:400BPH
Mould Open Stroke 240mm
Max. Mould Thickness 250mm
Space Between Tie Bars 340*540mm
Electrical System
Voltage Standard 380V/3PH/50HZ or special order
Total Power(Full Loaded) 8kw
Container
Max. Container Volume 0.1-5L(1cav)
Max. Container Diameter 220mm
Max. Container Height 400mm
Auxiliary System
Low Air compressor 8-10Bar
High Air compressor 30Bar
Dimension & Weight (L×W×H)
Blow molding machine 1700*600*1750mm
Preform Auto loader 1800*630*1380mm
Net Weight 0.94Ton
Model JND-880C
Clamping Force 120KN
Number of Cavities 1 Cavity
Theoretical Output 10L:350BPH
Mould Open Stroke 380mm
Max. Mould Thickness 300mm
Space Between Tie Bars 480*540mm
Electrical System
Voltage Standard 380V/3PH/50HZ or special order
Total Power(Full Loaded) 10kw
Container
Max. Container Volume 0.1-5L(1cav)
Max. Container Diameter 220mm
Max. Container Height 400mm
Auxiliary System
Low Air compressor 8-10Bar
High Air compressor 30Bar
Dimension & Weight (L×W×H)
Blow molding machine 1560*720*1750mm
Preform Auto loader 1800*630*1380mm
Net Weight 1.0Ton
Model JND-880H
Clamping Force 80KN
Number of Cavities 2 Cavity
Theoretical Output 0.5L:600BPH
Mould Open Stroke 150mm
Max. Mould Thickness 200mm
Space Between Tie Bars 340*500mm
Electrical System
Voltage Standard 380V/3PH/50HZ or special order
Total Power(Full Loaded) 15kw
Container
Max. Container Volume 0.1-2L(2cav)
Max. Container Diameter 110mm
Max. Container Height 360mm
Auxiliary System
Low Air compressor 8-10Bar
High Air compressor 30Bar
Dimension & Weight (L×W×H)
Blow molding machine 1500*600*1750mm
Preform Auto loader 1800*630*1380mm
Net Weight 0.93Ton
