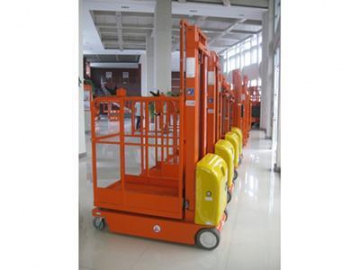

Electric Aerial Reclaimer ZDYT3-4.5
Electric Aerial Reclaimer ZDYT3-4.5
Here are standard configurations of this electric aerial reclaimer.
1. Can intelligent control bus
2. Proportional control
3. Charge indicator
4. Working chronometer
5. Troubleshoot supporting seat
6. Auto low voltage alarm
7. Emergency descending button
8. Safeguard of ultra-temperature
9. Overload limiter
Electric Aerial Reclaimer ZDYT3-4.5
Given below are technical parameters of this electric aerial reclaimer.
(Note: 1KG=2.2LB 1INCH=25.4MM)
| Model | ZDYT3-3 | ZDYT3-3.5 | ZDYT3-4.0 | ZDYT3-4.5 | |
| Capacity | kg | 300 | 300 | ||
| Max. working height | m | 5 | 5.5 | 6 | 6.5 |
| Max. platform height | m | 3 | 3.5 | 4 | 4.5 |
| Overall Length | m | 1.53 | 1.53 | ||
| Overall Width | m | 0.7 | 0.7 | ||
| Overall Height | m | 1.89 | 1.64 | 1.81 | 1.98 |
| Platform size | m | 0.95X0.64 | 0.9×0.64 | ||
| Min. ground clearance | m | 0.04 | 0.05 | ||
| Wheelbase | m | 1.24 | 1.24 | ||
| Turning radius | m | 0 | 0 | ||
| Driving motor | 2x24VDC/0.4kw | 2×24VDC/0.4KW | |||
| Lifting motor | 24VDC/2kw | 24VDC/2KW | |||
| Drive speed-stowed | kw/h | 4 | 4 | ||
| Drive speed-raised | kw/h | 1.1 | 1.1 | ||
| Raise/lower speed | sec | 20/22 | 17/19 | 20/22 | 23/25 |
| Battery | 2x12V/120Ah | 2×12V/120Ah | |||
| Charger | 24V/12A | 24V/12A | |||
| Driving wheel | mm | 230x80 | 230×80 | ||
| Front wheel | in | 6 | 6 | ||
| N.W | kg | 574 | 655 | 665 | 675 |
