Continuous Extrusion Machine for Aluminum Tube

1. Pay-off Machine    2. Straightening Unit    3. Washing Machine    4. Cutting Machine    5. Continuous Extruding Machine    6. Cooling and Drying System    7. Meter Counter    8. Guide Pulley    9. Take-up Machine    10. Hydraulic and Lubrication System    11. Electric Control Cabinet    12. Operation Console

The LJ300A continuous rotary extrusion line adopts high cleanness aluminum rod as the feedstock to manufacture round aluminum tubes with the diameter from 4.5mm to 20mm, as well as square tubes with maximum width of 35mm. The feedstock is made into the aluminum tube at a stroke, without further processes such as annealing, surface treatment, etc.

Available with an online eddy current flaw detector, this series of continuous rotary extrusion line for aluminum tubes is able to guarantee the product quality. The extruded aluminum tubes are often used for refrigerator and freezer evaporators as well as the multi-channel pipeline system for automobile air conditioners and intercoolers.

Technical Specifications
Main Unit: Continuous Rotary Extrusion Equipment
Model LJ300A
Nominal Diameter of Extrusion Wheel 300 mm
Rated Rotation Speed 20 RPM
Power of Main Motor 110kW
Feedstock: Aluminum Rod
Diameter Φ9.5 mm -Φ12mm
Diameter Tolerance ±0.2mm
Yield Strength 90MPa

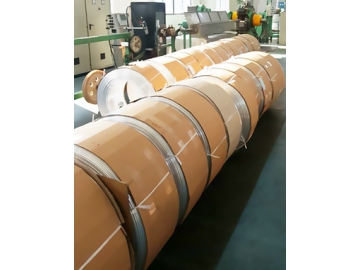

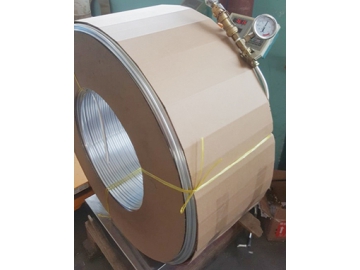

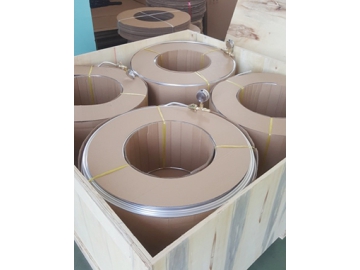

End Product: Aluminum Tubes
Sectional Area Range 8-120mm² (Ф6.5-Ф14 mm aluminum tube)
Max. Width 35mm (square tubes)
Production Line: Aluminum Tube Production Line
Average Output 100 kg/h-160 kg/h
Installed Capacity 380V, 3 phase, 150KVA
Flash Amount ≤1%
Construction
Feedstock Pay-off Machine one pcs
Aluminum Rod Straightening Machine one pcs
Scrubbing Machine one pcs
Ultrasonic Washing Unit one pcs
Aluminum Rod Cutter one pcs
Continuous Extrusion Machine one pcs
Cooling System one set
Meter Counter one set
Sxy800 Take-up Machine two sets
Electrical Control System (with Touch Screen) one set
Hydraulic and Lubricating System one set
Ultrahigh Pressure Hydraulic Station one set
