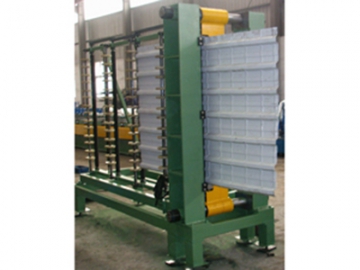

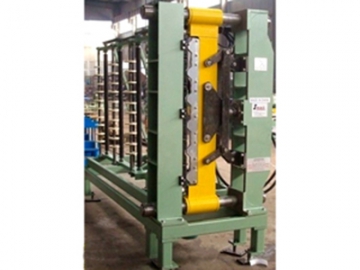

Curving Machine
Request a Quote
- Size: 2800mm×1400mm×1800mm
- Installation type: Vertical type
- Curving angle: 0-90 degree
- Working speed: 90 degree/4min (adjustable)
- Forming rollers step: 5 groups
- Thickness of material coils: 0.35-0.8mm
- Reducer motor: WWJK75-25 (1.5kw motor)
- Min. curving radius: 450mm (semi-circle radius 550mm)
- Hydraulic station power: 11kw
- Oil pump model: 63SCY-Y160L-4
- Material of punch die: 40Cr, surface hardening and nitriding
- Controlling system: PLC, touch screen.
