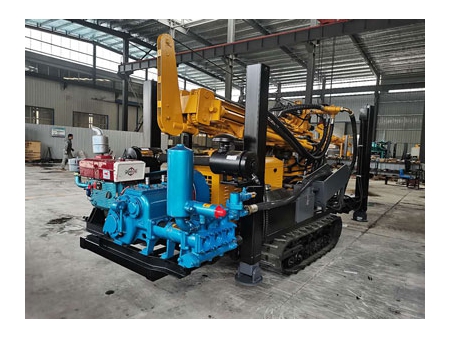

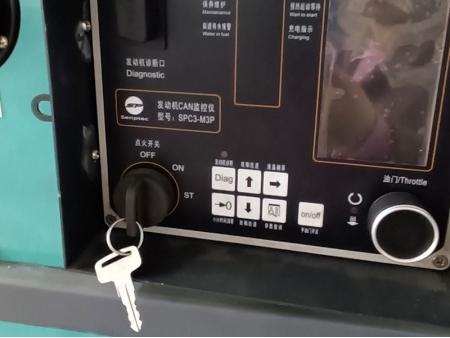

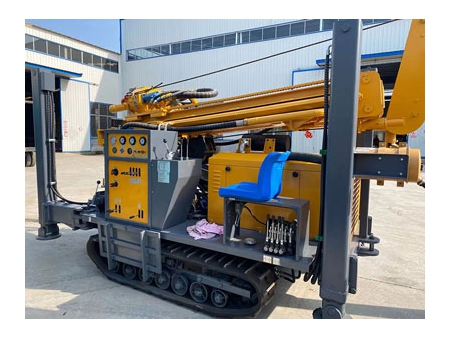

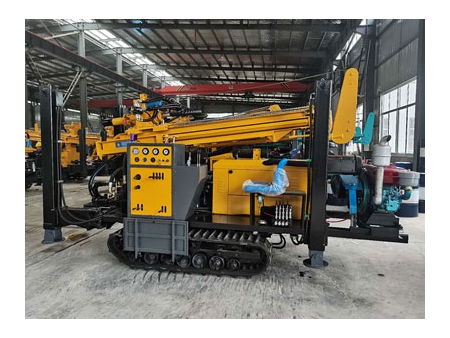

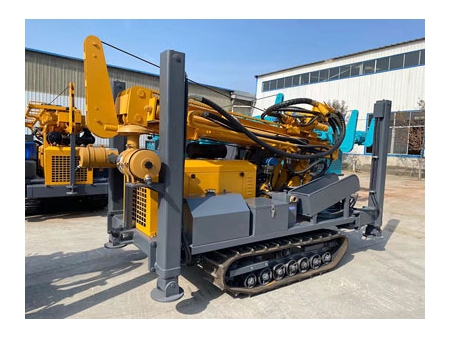

KW200R water well drilling rig is updated based on KAISHAN KW180R drilling rig. By comparing, the max. well diameter can be 305m and the supporting power is increased from 55kW to 65kW. Besides, its lifting power reaches up to 13T and the operating panel is convenient to use. Equipped with a rubber track, the driller is durable and suitable to harsh working conditions, with a long service life.

Key Parameters
Drilling Depth:200m
Drilling Diameter:140-305mm
Diesel Engine Power:55-65Kw

1.The water well drilling rig adopts a 65 kW Quanchai turbocharged engine to provide powerful movement.
2.Patented composite arm provides a long stroke and the dual cylinder lifting device provides a large lifting power of 13T.

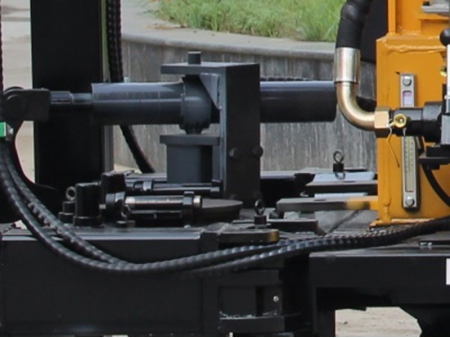

3.The main arm of this water well drilling rig is installed with a stopper to protect the cylinder.
4.Professional chassis offers durability and strong bearing capacity and its wide chain plate causes small damage to the road.
5.The design of parallel transmission with independent oil pump allows for sufficient power and reasonable distribution. The unique hydraulic system offers simple maintenance and low cost.

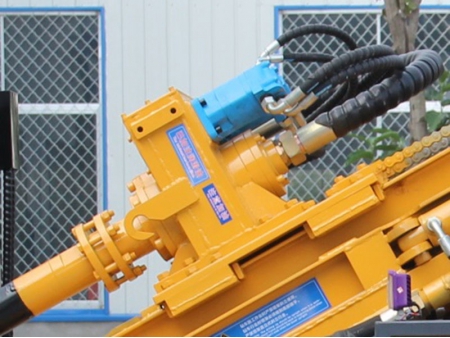

6.The hydraulic motor is equipped with a reducer to ensure durability and long service life.
7.Dust removal device effectively reduces the dust pollution and makes the water well drilling rig suitable for cavity and tunnel applications.
8.Fast distribution valve allows for three-gear speed regulation and a maximum speed of 150-160 rpm, enabling the drilling of water and air.
9.Each hydraulic hose is covered with a soft management unit to enlarge its service life.
10.KW200R water well drilling rig is driven by a diesel engine and its walking, turning, propelling, lifting, leg and discharge rod are hydraulic controlled.

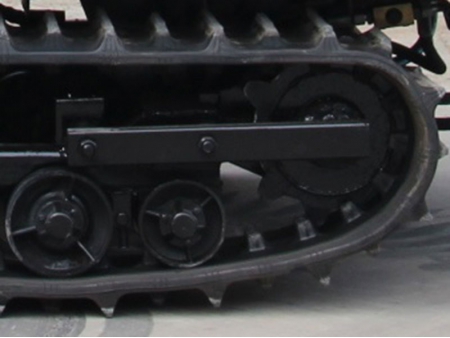

11.This geothermal drilling rig adopts tracked structure to offer convenient movement. Its rubber track base allows it to travel freely in the city and courtyards without damaging the ground.
12.Strong hydraulic leg can adjust the height of the rig quickly and stably for easy loading and unloading and transposition.
13.The water well drilling rig’s special wellhead provides a certain center for drilling, ensuring a vertical drilling and the position accuracy.
14.The mechanical positioning of the track and carriage improves the stability of this water well drilling rig.
15.The pneumatic system comes with a customized lubricator to lubricate the hammer, greatly extending the service life.

As a professional supplier of geothermal drilling rig, KAISHAN can provide different products according to your needs. For example, usually a screw air compressor is equipped, but other air compressors are optional if you require a mud pump. Before purchasing our drilling rig, please tell us the detailed working conditions or a drilling rig using air compressor or mud pump, then KAISHAN is ready to help! Besides, a rubber or steel track is optional to choose, coming with different prices.
