KJ 211 Hydraulic Top Hammer Drilling Jumbo
Function and feature

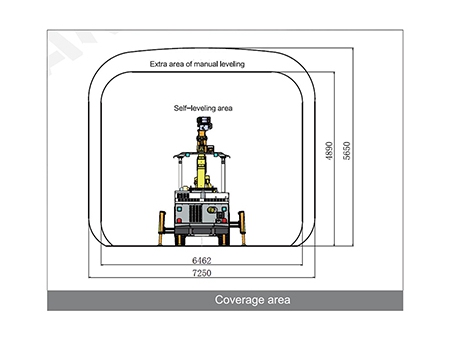

KJ211 is predetermined to be used for mining, preparation work and tunneling. It is a hydraulic drilling jumbo for independent operation, which can be used for drilling vertical, inclined and horizontal blast hole. Applicable for hard-rock tunneling operation of 12-35m2 section;
Solid and reliable universal arm is equipped with the best section covering shape, and the propulsion beam can turn over by 360°and level off automatically, so as to be convenient for quickly achieving drilling and positioning.
Meanwhile, the arm can be also used for laterally opening cross drift and anchor-hold drilling operation.
The arrangement of drill carriage shall ensure the view of the manipulator in good condition.
The arrangement is in balance condition. The strong four-wheel-drive articulated base plate can ensure that the drill carriage is able to travel flexibly, quickly and safely in the narrow roadway.
High-frequency impact jack drill optimizes the transmission efficiency of impact wave, enhances the drilling rate, reduces consumption of drilling tools and enhances the serviceability rate of equipment by adopting stair piston;
Spacious operation space and a series of automatic functions are conducive for the driver concentrating to safely, quickly and accurately drill.
Each maintenance part has been protected well and shall also be easy to maintain at the same time.

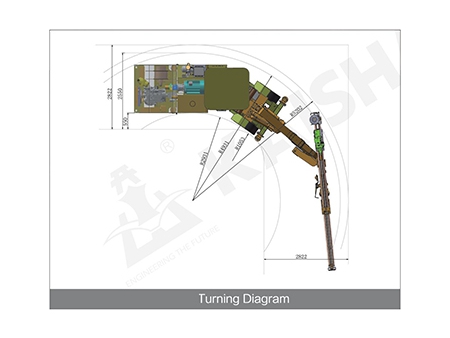

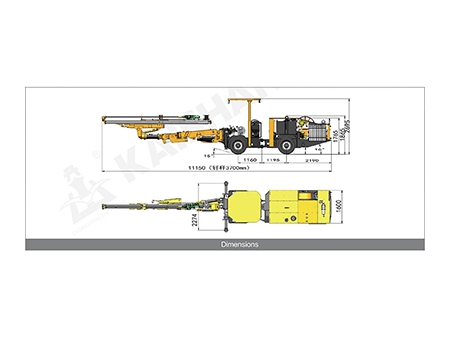

| Boundary dimension and weight | Drilling system | |||
| Length | 10000mm | Rock drill | 1×HC50/R38 | |
| Width | 1600mm | Impact power | 13kW | |
| Height | 1850/2650mm | Surge pressure | 105L/min | |
| Weight | 11000 kg | The maximum rotary pressure | 130bar | |
| Running speed (Horizontal) | 10km/h | Frequency | 150bar | |
| Maximum grade ability | 200 | Torque | 62 Hz | |
| Safety protection | Hole diameter | 325Nm | ||
| Noise level | ＜110dB(A) | Turnover of propulsion beam | 32-76mm | |
| Adjustable security ceiling | Meet anti-rolling and anti- rock fall requirement | Compensative travel of propulsion beam | 360° | |
| drill boom | Rock drill | 1600mm | ||
| type | K26F | drill pipe | R38-H35-R32-3700 | |
| form | Automatic level off | Electric hydraulic power pack | | |
| Flexible drill boom | 1200mm | Electric motor | 45kW/55kW Three-phase motor | |
| Wind and water circuit system | impact-propel-drill boom | Axial variable displacement piston pump | ||
| Air compressor | 1×JN5 | Rotation | Gear pump | |
| Displacement | 0.5m3/min | Filter fineness | 10μ | |
| Pressure | 5-8bar | Hydraulic oil tank | 240L | |
| Shank lubrication device | | Hydraulic cooler | Water cooler | |
| Gas consumption for lubrication | 0.3m3/min | Operating voltage | 380V | |
| Oil consumption for lubrication | 180-250g/h | Frequency | 50Hz | |
| Water pump | 1×CR3 | Startup method | Star delta | |
| Power | 1.5kW | Specification of the recommended cable | 3×35 3G6 2×1.5 | |
| 3×50 3G6 2×1.5 | ||||
| Pump output | 3m3/h | | ||
| Base plate | | |||
| Tail gas clean-up | Power gas catalyst | | ||
| Transmission system | Four-wheel-drive closed- type travelling system | | ||
| Hunting angle | Swing of rear axle ±6° | | ||
| Tire | 300-15 | | ||
| Steering mechanism | Articulated steering | | ||
| Travel braking | Hydraulic brake | | ||
| Parking braking | Multi-disk wet brake | | ||
| Diesel engine | BF4L2011 53kW，2800rpm | | ||
