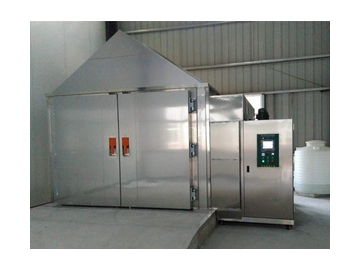

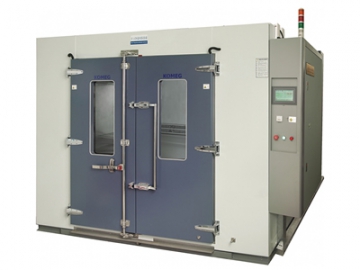

Walk-In Salt Spray Chamber

Request a Quote

Website: http://testing-machinery.com/5-3-walk-in-salt-spray-chamber.html

The walk-in salt spray test chambers provide solutions for testing large components, assemblies and finished products for many industries. It features continuous salt spray and its spray volume is 1.0~2.0ml/80cm²/h (16-hour average volume). Its air pressures should be kept at 1.00±0.01kgf/cm².

If our standard walk-in salt spray test chambers don't meet your needs, we will manufacture customized walk-in salt spray chambers in a variety of dimensions and functions to meet unique customer requirements.

Parameters

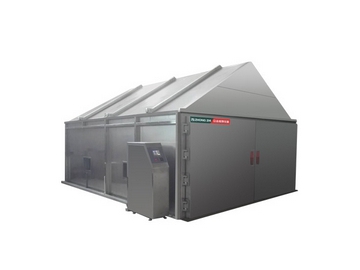

CZ-A Series Walk-In Salt Spray Chamber

Model	CZ-8000C	CZ-12000C	CZ-16000C
Inner Capacity	8 Cubic Meter	12 Cubic Meter	16 Cubic Meter
Workshop Dimension (m)	2x2x2	3x2x2	4x2x2
Lab Temperature	Saline testing method(NSS ACSS)35℃±1℃/Corrosion-resistant testing method(CASS)50℃±1℃
Pressure PotTemperature	Saline testing method(NSS ACSS)47℃±1℃/Corrosion-resistant testing method(CASS)63℃±1℃
Saline Concentration	Sodium chloride solution with 5% concentration or 0.26g copper chlorride is added to eachliter of sodium chloride solution with 5% concentration
Compressed Air Pressure	1.00±0.01kgf/cm²
Spray Volume	1.0~2.0ml/80cm²/h(at least collecting 16 hours and take the average value)
Relative Humidity In The Lab	Above 85%
PH Value	6.5~7.2 3.0~3.2
Spray Method	Continuous spraying
Power	AC380V ∮3 Phases 28.6KW	AC380V ∮3 Phases 30.6KW	AC380V ∮3 Phases 32.6KW

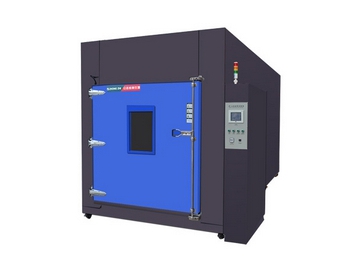

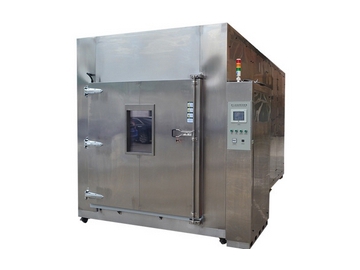

CZ-D Series Walk-In Salt Spray Chamber

Model	CZ-12600D	CZ15000D
Workspace Dimensions- H x W x D (cm)	2800x2500x1800	3000x2500x2000
Exterior Dimensions- H x W x D (cm)	About 3000x2500x3100	About 3200x2700x3300
Temperature Range	10℃-70℃	RT-70℃
Workspace Temperature	NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃
Humidifier Temperature	NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃
Workspace Volume	108L	270L480L800L1440L
Power (optional)	AC380V	AC380V
