Waste Stripper

Request a Quote

About Us: http://jgcartonmachine.com/5-5-waste-stripper/226665/index.html

The carton waste stripper provides a safe economic solution for removing waste paper from die cutting and slitting operations during the production of cardboard and corrugated board products.

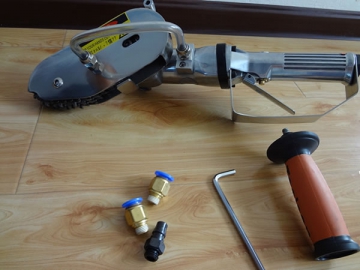

The waste stripper is equipped with a multi tooth chain drive that is pneumatically driven. The teeth catch waste paper as it falls and it is 10 times faster than cleaning the equipment by hand.

Applications
This machine is suitable for margin waste removal for cardboard and a variety of corrugated paper types.

Features
The stripper is highly efficient for manual cleaning of your paper equipment. Manual cleaning can take hours, but this device can finish the job in 10-30 minutes depending on the machinery being cleaned.

Technical Parameters

Model		Speed R.P.M	Air cons	Air pressure	air hose size	N.W
KS2590S	small teeth	2500	12	6-8	8x12	4.0
KS2536	middle teeth	2500	12	6-8	8x12	4.0
KS2536L	large teeth	2500	12	6-8	8x12	4.0
KS2190S	small teeth	2100	12	6-8	8x12	4.5
KS2136	middle teeth	2100	12	6-8	8x12	4.5
KS2136L	large teeth	2100	12	6-8	8x12	4.5
