Description of Acetaldehyde Production Process

Acetaldehyde production includes 3 primary process: acetylene hydration, ethylene oxidation, and alcohol oxidation. Helipont currently utilizes the alcohol oxidation process for the production acetaldehyde, because alcohol features a low costs and a wide usage range. It also features a low conversion rate. We use double towers for absorption- one tower for circulation absorption, and the other for a spraying absorption and recycling plant in order to obtain the best consumption.

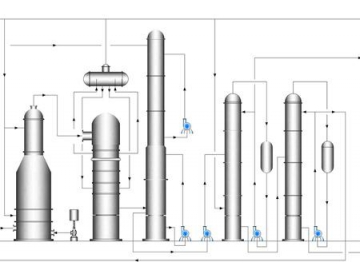

Flow chart
Main Equipment for Acetaldehyde Plant
  • Evaporator
  • Oxidation tower
  • Absorption tower
Production Process
  • Mix the alcohol material.
  • After removing impurities such as dust via air filter, the outside air enters the evaporator via the roots blower.
  • Mixed alcohol and air react in the evaporator and generate acetaldehyde.
  • Cool down the acetaldehyde and unreacted alcohol.
  • Rectify the acetaldehyde.

Annotation: for more information, please do not hesitate to contact us.

Performance
Name Specification and Composition Consumption quota
Alcohol ≥95% 1.170t/t
Name Specification and Composition 4.3t/t
Process Water 25PPM(5℃)Chloridion 6t/t
Steam 0.8MPa(Gauge) 3.0t/t
Instrument Compressed Gas 0.6MPa(Gauge) 7m3/t
Circulating Cooling Water Water Inlet30℃, Water Outlet38℃, Water Pressure 0.35MPa 410t/t
Chilled Water Water Inlet7℃, Water Outlet12℃ 160×104KJ/t
Electric 380V 50Hz 250KWH/t
Waste Water Ethanol 0.03%, Acidity 0.25%, COD5000ppm, BOD2000ppm 5t/t
Exhaust Gas Acetaldehyde≤0.1%, CO+CO2 ≤0.8%, H2+ CH4 ≤1.2%, H2O≤1%, N2≥96% 1.143t/t
Acetaldehyde Yield 99.7%wt
