Medical High Purity Nitrogen Generator

Request a Quote

About Us: http://capsule-machines.com/5-nitrogen-generator.html

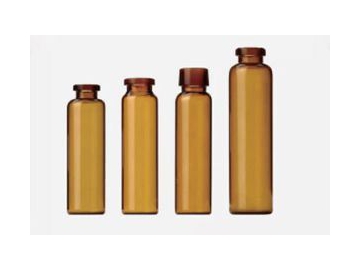

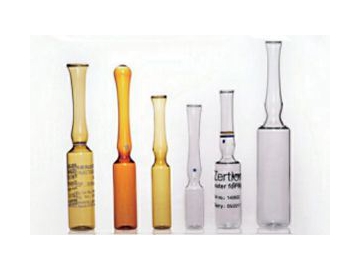

The QCN series nitrogen generator is used to deliver high-purity nitrogen for the manufacutre of ampoules, vials, and infusions in the pharmaceutical industry, as well as food and biological engineering industries. The nitrogen generator is mainly consisted of compressed air post-treatment system, PSA (pressure swing adsorption) system and air filtering & sterilizing system.

Applications

Water injections

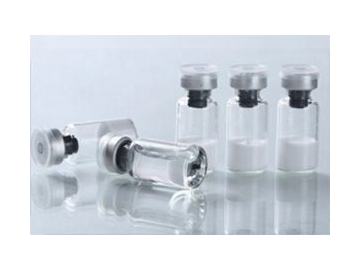

Powder injections / lyophilized products
Infusions
Oral solutions

Features

Unique airflow distribution unit delivers uniform distribution of airflow and eliminates molecular sieve's adsorption "dead zone", therefore increasing the utilization rate of the molecular sieve, reducing compressed air consumption, while preventing molecular sieve from being directly impacted by airflow;
The nitrogen generator adopts the principle of pressure swing adsorption to produce nitrogen gas with high purity of up to 99.999%;
The specially designed clamping unit enables that the absorber does not require additional molecular sieve, avoiding the pulverization of molecular sieve;
Multi-stage filtration system removes moisture and particles to ensure the high purity of produced nitrogen gas;
Intelligent control system is offered with human-machine interface and smart control module, providing high level of automation, energy efficiency, operation safety and reliability to realize unmanned production process;
P860-5N analyzer is configured to guarantee the quality of nitrogen gas;
The standard cleaning and disinfecting procedures and GMP compliant verification report templates can be made by the supervision and testing departments of companies during the pharmaceutical and food production processes, enabling the entire nitrogen preparation process to be recordable, controllable and verifiable;

Technical Specifications

Model:
QCN-5
Productivity: 5m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥0.8m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 1.2 kW
Overall dimensions: 1560×1080×2050mm
Weight: 700Kg

Model:
QCN-10
Productivity: 10m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥1.5m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 1.5kW
Overall dimensions: 1750×1550×2260mm
Weight: 1100Kg

Model:
QCN-20
Productivity: 20m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥3.8m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 1.8kW
Overall dimensions: 1750×1760×2600mm
Weight: 1500Kg

Model:
QCN-30
Productivity: 30m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥6m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 1.8kW
Overall dimensions: 1885×2170×2700mm
Weight: 2000Kg

Model:
QCN-50
Productivity: 50m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥7m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 2.5kW
Overall dimensions: 3800×1250×2750mm
Weight: 2400Kg

Model:
QCN-100
Productivity: 100m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥13.4m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 3kW
Overall dimensions: 5200×1900×3200mm
Weight: 5000Kg

Model:
QCN-150
Productivity: 150m³/h
Purity: ≥99.999%
Outlet pressure: 0.3-0.6mPa (adjustable)
Compressed air: ≥20m³/min (normal temperature and pressure)
Power supply: 220V/50HZ
Power (including cold dryer, excluding air compressor): 3.5kW
Overall dimensions: 5700×2000×2850mm
Weight: 6000Kg

Model	QCN-5	QCN-10	QCN-20	QCN-30	QCN-50	QCN-100	QCN-150
Productivity	5m³/h	10m³/h	20m³/h	30m³/h	50m³/h	100m³/h	150m³/h
Purity	≥99.999%	≥99.999%	≥99.999%	≥99.999%	≥99.999%	≥99.999%	≥99.999%
Outlet pressure	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)	0.3-0.6mPa (adjustable)
Compressed air	≥0.8m³/min (normal temperature and pressure)	≥1.5m³/min (normal temperature and pressure)	≥3.8m³/min (normal temperature and pressure)	≥6m³/min (normal temperature and pressure)	≥7m³/min (normal temperature and pressure)	≥13.4m³/min (normal temperature and pressure)	≥20m³/min (normal temperature and pressure)
Power supply	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Power (including cold dryer, excluding air compressor)	1.2 kW	1.5kW	1.8kW	1.8kW	2.5kW	3kW	3.5kW
Overall dimensions	1560×1080×2050mm	1750×1550×2260mm	1750×1760×2600mm	1885×2170×2700mm	3800×1250×2750mm	5200×1900×3200mm	5700×2000×2850mm
Weight	700Kg	1100Kg	1500Kg	2000Kg	2400Kg	5000Kg	6000Kg
