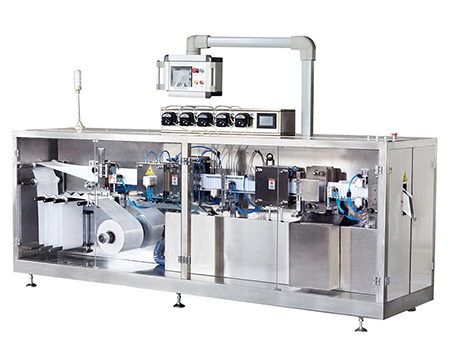

Ampoule Filling and Sealing Machine, DGS-240P5

Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Ampoule Filling and Sealing Machine, DGS-240P5
Request a Quote

If you’re packing liquid drugs, then most definitely, you need an ampoule filling machine. It provides an effective way of filling and sealing ampoules. An automatic pharmaceutical ampoule filling and sealing machine will increase productivity, efficiency, and accuracy.

Features
  • High speed and high precision motion controller
  • Stepless frequency control of motor speed control
  • Automatic unwinding, roll film slitting and folding
  • The photoelectric device is designed to realize positive and negative pattern alignment.
  • Meets high standard of packaging requirements.

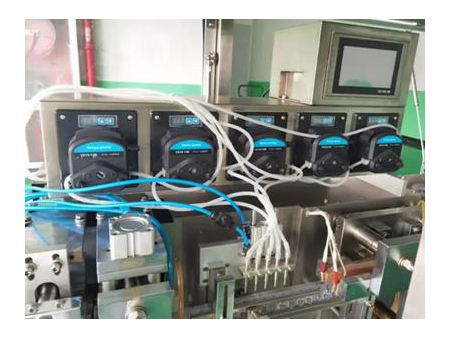

  • High filling accuracy is ensured by using mechanical piston pump and digital peristaltic pump.
  • There is no drip, no bubble, no overflow during filling.

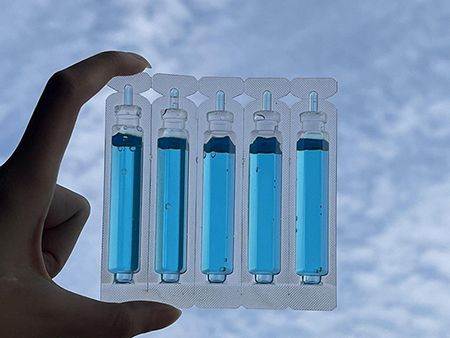

  • The bottom of the bottle is flat, which could stand.
  • Automatic stop when door is open.
Technical Specifications
Model DGS-118P5 DGS-240P5
Max Forming Depth 16mm 12mm
Cutting Frequency 0-25 times/min
Packing Material PET/PE, PVC/PE
Packing Roll Two rolls One roll
Filling Volume 1-50ml 1-100ml
Filling Head 5 heads
Power 7kw
Voltage 220v-380v/50Hz
Weight 900kg 1000Kg
Outer Size L×W×H 2300×850×1500(mm) 3380×950×1800(mm)
