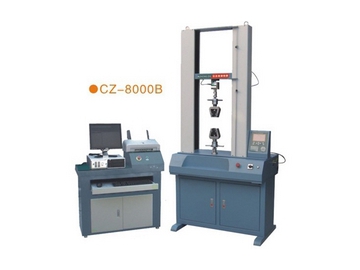

CZ8000 Series Universal Testing Machine

CZ8000 Series Universal Testing Machine
CZ8000 Series Universal Testing Machine
Request a Quote

These universal testing machines provide a wide capacity range of range of 100N to 50KN. Their force resolution is 1/500,000 and force accuracy is ±0.25%. Their travel resolution is 0.001mm.

We also provide custom-made universal testing machines in a variety of dimensions and functions to meet your special requirements.

Parameters
Model CZ-8000 CZ-8000B
Capacity 100N,200N,500N,1kN,2kN,5kN,10kN,20kN,50kN (Optional) 100N,200N,500N,1KN,2KN,5KN,10KN (Optional)
Measurement Unit N,kN,kgf,Lbf,MPa,Lbf/In2,kgf/mm2
Force Resolution 1/500,000
Force Accuracy ±0.25%
Stroke 800mm,1000mm (Optional)
Effective Width 400mm,500mm (Optional)
Speed 0.001~500mm/min 0.001~500mm/min or 0.00
Speed Accuracy ±0.5%
Travel Resolution 0.001mm
Motor Style AC Servo Motor
Dimensions (WxDxH) (mm) 800x700x2400 900x600x2200
Weight 195kg 150kg
Power AC220 10A (optional)
