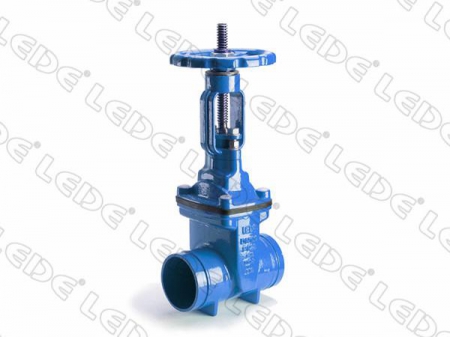

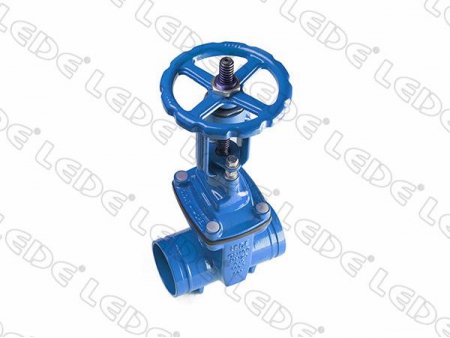

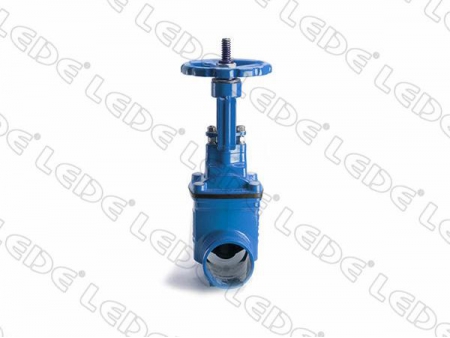

Resilient Seated OS&Y Gate Valve
Features
1. The resilient seated OS&Y gate valve is designed as one of our newest products, with a simple construction and easy to maintain characteristics.
2. The gate valve has a low torque and a high pressure. The pressure can reach PN40 under 1/3 of a standard torque.
3. When the valve is fully opened, the upper sealing parts can be replaced under a water supply.
4. The valve is a straight channel. When the valve is fully open, the disc will completely leave the channel, so that there is no dirt left behind, and the flow resistance is decreased.
5. The outer and inner surface of the valve is coated in a high quality epoxy powder, so that the paint coating is even and complete, making the gate valve safe for use in the beverage, food and pharmaceutical industries.

Technical Data

Nominal diameter	DN50-600
Nominal pressure	PN 10/16/25/40
Valve standard	EN1171
Face to face length	EN558-1 ISO5752
Flange standard	EN1092-2 ISO7005-2 ASME-B16.42
Grooved standard	GB 5135.11 (optional) AWWA C606
Test standard	EN12266 AWWA C515 GB 5135.6
Temperature range	0 ~ 80C

Resilient Seated OS &Y Gate Valve Material Specifications and Parts List

No.	Names of Parts	Materials
1	Body	Ductile iron
2	Protector	EPDM
3	Bonnet gasket	EPDM
4	Bonnet	Ductile iron
5	Screw	Carbon steel hot galvanizing or stainless steel
6	Yoke	Ductile iron
7	Gland	Ductile iron
8	Hand wheel	Ductile iron
9	Compaction Nut	Carbon steel hot galvanizing or stainless steel
10	Double-screw bolt	Carbon steel hot galvanizing or stainless steel
11	Spring washer	Carbon steel hot galvanizing or stainless steel
12	Nut	Carbon steel hot galvanizing or stainless steel
13	Flat washer	Carbon steel hot galvanizing or stainless steel
14	Sealing ring	EPDM
15/16/17	O-rings	EPDM or NRM
18	Packing	PTFE
19/20	Sliding disc	Bronze or POM
21	Stem nut	Brass or bronze
22	Lock nut	Carbon steel hot galvanizing or stainless steel
23	Wedge	Ductile iron+EPDM
24	STEM	STAINLESS STEEL 304 or1Cr17Ni2Cr13

14 Series Resilient Seated OS&Y Gate Valve Flanged End

Z41X-01 Nominal Pressure PN 10/16

Dimensions		Pressure Rating	Size (mm)
Dimensions		Pressure Rating	OD	OK	L	H	H1	H	Od
DN	inch	PN	OD	OK	L	H	H1	H	Od
50	2	10/16	165	125	150	441	358.5	420.5	22
65	2.5	10/16	185	145	170	452	359.5	429.5	22
80	3	10/16	200	160	180	478	378	462	22
100	4	10/16	220	180	190	559.5	449.5	553	24
125	5	10/16	250	210	200	674.5	549.5	677	28
150	6	10/16	285	240	210	734	591.5	747	28
200	8	10	340	295	230	905.5	735.5	938	32
200	8	16	340	295	230	905.5	735.5	938	32
250	10	10	400	350	250	1100.5	900.5	1161	36
250	10	16	400	355	250	1100.5	900.5	1161	36
300	12	10	455	400	270	1273	1045.5	1353	40
300	12	16	455	410	270	1273	1045.5	1353	40
350	14	10	505	460	290	1484.5	1232	1585	40
350	14	16	520	470	290	1492	1232	1585	40
400	16	10	565	515	310	1684.5	1402	1805	44
400	16	16	580	525	310	1692	1402	1805	44
450	18	10	615	565	330	1868.5	1561	2065	50
450	18	16	640	585	330	1881	1561	2065	50
500	20	10	670	620	350	2068	1733	2238	50
500	20	16	715	650	350	2090.5	1733	2238	50
600	24	10	780	725	390	2390	2000	2605	50
600	24	16	840	770	390	2420	2000	2605	50

14 Series Resilient Seated OS&Y Gate Valve Flanged End

Z41X-01 Nominal Pressure PN 25/40

Dimensions		Pressure Rating	Size (mm)
Dimensions		Pressure Rating	OD	OK	L	H	H1	H2	Od
DN	inch	PN	OD	OK	L	H	H1	H2	Od
50	2	25	165	125	150	441	358.5	420.5	22
50	2	40	165	125	150	441	358.5	420.5	22
65	2.5	25	185	145	170	452	359.5	429.5	22
65	2.5	40	185	145	170	452	359.5	429.5	22
80	3	25	200	160	180	478	378	462	22
80	3	40	200	160	180	478	378	462	22
100	4	25	235	190	190	567	449.5	553	24
100	4	40	235	190	190	567	449.5	553	24
125	5	25	270	220	200	684.5	549.5	677	28
125	5	40	270	220	200	684.5	549.5	677	28
150	6	25	300	250	210	741.5	591.5	747	28
150	6	40	300	250	210	741.5	591.5	747	28
200	8	25	360	310	230	915.5	735.5	938	32
200	8	40	375	320	230	923	735.5	938	32
250	10	25	425	370	250	1113	900.5	1161	36
250	10	40	450	385	250	1125.5	900.5	1161	36
300	12	25	485	430	270	1288	1045.5	1353	40
300	12	40	515	450	270	1303	1045.5	1353	40

03 Series Resilient Seated OS&Y Gate Valve Flanged End

Z41X-02 Nominal Pressure PN 10/16

Dimensions		Pressure rating	Size (mm)
Dimensions		Pressure rating	OD	OK	L	H	H1	H	Od
DN	inch	PN	OD	OK	L	H	H1	H	Od
50	2	10/16	165	125	178	441	358.5	420.5	22
65	2.5	10/16	185	145	190	452	359.5	429.5	22
80	3	10/16	200	160	203	478	378	462	22
100	4	10/16	220	180	229	559.5	449.5	553	24
125	5	10/16	250	210	254	674.5	549.5	677	28
150	6	10/16	285	240	267	734	591.5	747	28
200	8	10	340	295	292	905.5	735.5	938	32
200	8	16	340	295	292	905.5	735.5	938	32
250	10	10	400	350	330	1100.5	900.5	1161	36
250	10	16	400	355	330	1100.5	900.5	1161	36
300	12	10	455	400	356	1273	1045.5	1353	40
300	12	16	455	410	356	1273	1045.5	1353	40
350	14	10	505	460	381	1484.5	1232	1585	40
350	14	16	520	470	381	1492	1232	1585	40
400	16	10	565	515	406	1684.5	1402	1805	44
400	16	16	580	525	406	1692	1402	1805	44
450	18	10	615	565	432	1868.5	1561	2065	50
450	18	16	640	585	432	1881	1561	2065	50
500	20	10	670	620	457	2068	1733	2238	50
500	20	16	715	650	457	2090.5	1733	2238	50
600	24	10	780	725	508	2390	2000	2605	50
600	24	16	840	770	508	2420	2000	2605	50

03 Series Resilient Seated OS&Y Gate Valve Flanged End

Z41X-02 Nominal Pressure PN 25/40

Dimensions		Pressure rating	Size (mm)
Dimensions		Pressure rating	OD	OK	L	H	H1	H2	Od
DN	inch	PN	OD	OK	L	H	H1	H2	Od
50	2	25	165	125	178	441	358.5	420.5	22
50	2	40	165	125	178	441	358.5	420.5	22
65	2.5	25	185	145	190	452	359.5	429.5	22
65	2.5	40	185	145	190	452	359.5	429.5	22
80	3	25	200	160	203	478	378	462	22
80	3	40	200	160	203	478	378	462	22
100	4	25	235	190	229	567	449.5	553	24
100	4	40	235	190	229	567	449.5	553	24
125	5	25	270	220	254	684.5	549.5	677	28
125	5	40	270	220	254	684.5	549.5	677	28
150	6	25	300	250	267	741.5	591.5	747	28
150	6	40	300	250	267	741.5	591.5	747	28
200	8	25	360	310	292	915.5	735.5	938	32
200	8	40	375	320	292	923	735.5	938	32
250	10	25	425	370	330	1113	900.5	1161	36
250	10	40	450	385	330	1125.5	900.5	1161	36
300	12	25	485	430	356	1288	1045.5	1353	40
300	12	40	515	450	356	1303	1045.5	1353	40

AWWA C515 Resilient Seated OS&Y Gate Valve Flanged End

Z41X-03 Nominal Pressure Class150/Class300

Dimensions		Pressure rating	Size (mm)
Dimensions		Pressure rating	OD	OK	L	H	H1	H2	Od
DN	inch	Class	OD	OK	L	H	H1	H2	Od
50	2	150	152	120.7	178	434.5	358.5	420.5	22
50	2	300	165	127	178	441	358.5	420.5	22
65	2.5	150	178	139.7	190	448.5	359.5	429.5	22
65	2.5	300	190	149.4	190	454.5	359.5	429.5	22
80	3	150	191	152.4	203	473.5	378	462	22
80	3	300	210	168	203	483	378	462	22
100	4	150	229	190.5	229	564	449.5	553	24
100	4	300	254	200	229	576.5	449.5	553	24
125	5	150	254	216	254	676.5	549.5	677	28
125	5	300	280	235	254	689.5	549.5	677	28
150	6	150	279	241.3	267	731	591.5	747	28
150	6	300	318	269.7	267	750.5	591.5	747	28
200	8	150	343	298.5	292	907	735.5	938	32
200	8	300	381	330.2	292	926	735.5	938	32
250	10	150	406	362	330	1103.5	900.5	1161	36
250	10	300	445	387.4	330	1123	900.5	1161	36
300	12	150	483	431.8	356	1287	1045.5	1353	40
300	12	300	520	450.9	356	1305.5	1045.5	1353	40
