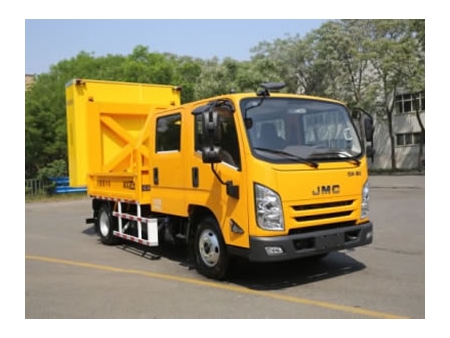

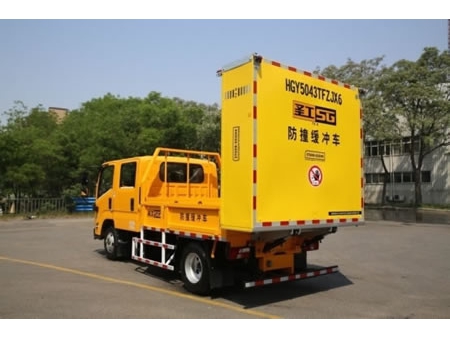

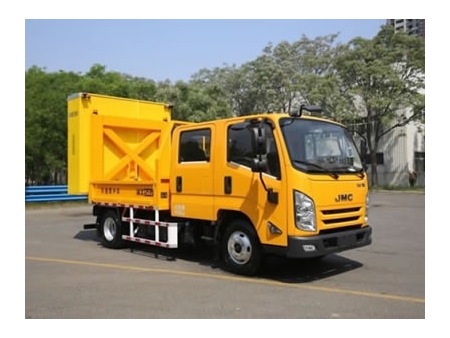

HGY5043TFZJX6 Impact Protection Vehicle
Microsurfacing Slurry Paver, Road Slurry Paving Machine, Micro Surfacing Paver. We are road pavement equipment manufacturer, offering asphalt emulsion spreading and sealing machinery
HGY5043TFZJX impact protection vehicle adopts STUER-EGGHE crash cushion for extended durability.
Parameter:| Model | HGY5043TFZJX6 |
| Chassis | JX1043TSG26 |
| Engine Power | 95kW |
| Wheel Base | 3360mm |
| Total Weight | 4495kg |
| SE Crash Cushion | Complies with EN-1317 standards and NCHRP 350 TL-2 specifications. |
| Impact Rating | 2000kg-70kph |
| Crash Cushion Size (L×W×H) | 2080×2300×600mm |
| Warning Sign | Ultra-bright LED directional arrow board |
| Compartment | Open compartment |
| Dimension (L×W×H) | 5980×2300×3160mm |

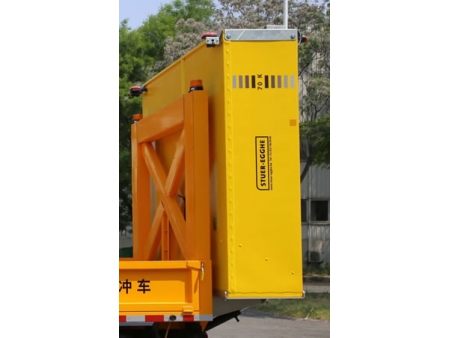

- 1.Crash Cushion (STUER-EGGHE)
•Able to bear the impact of a 2-ton vehicle at 70kph.
•With a lightweight housing and honeycomb crash-absorbing filling materials, the crash cushion can absorb the most impact energy.
•Corners of the crash cushion adopt a unique curved design, offering full width impact protection and preventing corner crack and scratch injury. - 2.Warning sign: LED directional arrow boards
Ultra-bright LED light arrow board is visible over a long distance, giving motorists enough time to move away from the blocked lane or the construction area. The operator of the impact protection truck can switch the warning sign on the lighting board to “Pass Left”, “Pass Right” or “No Passing” according to the actual construction conditions.

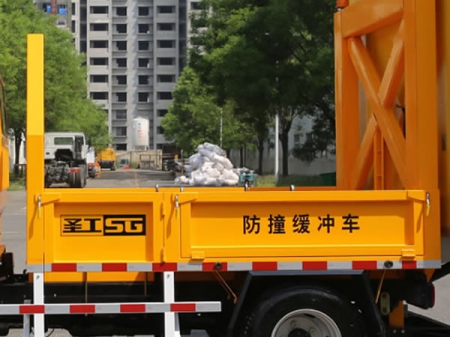

- 3.Compartment
Open compartment is designed for quick and easy loading of goods. It also has a cone stowage area for quick and efficient cones storage and placing.
- 4.Chassis
The IPV is equipped with JMC four-seat chassis and 95kW engine.
Crash Cushion Test

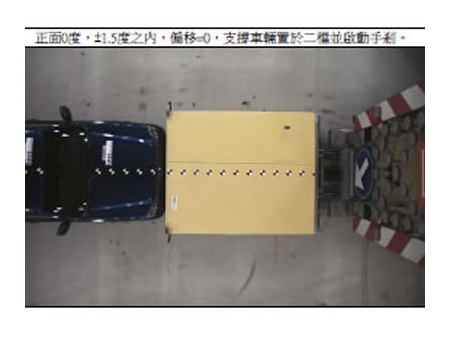

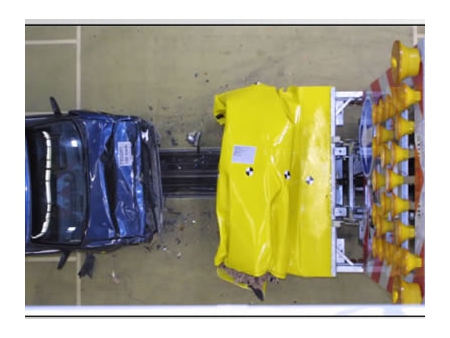

1.Impact absorbing effect
Test standard: NCHRP350 TL-2(70km/h)

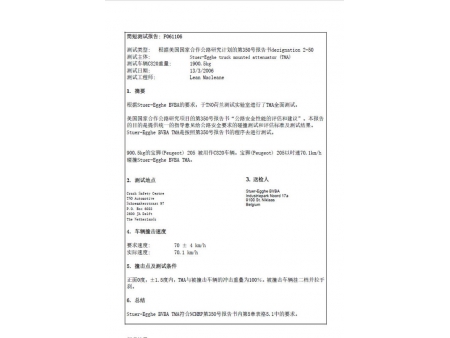

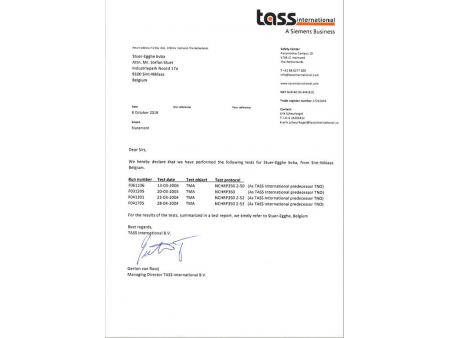

2.NCHRP350 TL-2 test report
