Highlight
1. Over 500 sets per year for all kinds of ship
2. A60 and A0 fireproof
3. Customized design
4. Certificates from all major class societies

Overview
The marine hydraulic sliding watertight door is used to open watertight bulkheads. These products meet the requirements of the SOLAS convention and standards set by CCS, ABS, DNV, GL, BV, and LR. Based on fire protection requirements, we have conventional A0 Class and fire protection A60 marine watertight doors. Our high quality products can be issued with product certificates from IACS members such as DNV and ABS per customer request.

Function
On both sides of the sliding watertight door, the power control devices are arranged to open and close the door, and a remote control device closing the boat door is installed in the wheelhouse. In addition, independent emergency manual hydraulic devices are provided on both sides of the door as well as the upper deck.

Hydraulic system
There are two types of hydraulic systems for the marine hydraulic sliding watertight door:
1. A set of centralized hydraulic systems with two independent power sources for multiple watertight doors. Each power source consists of a pump and an electromotor which can close all the doors simultaneously.
2. A set of independent hydraulic systems with power sources for each watertight door, comprised of a pump and an electromotor which can close the door.

Electric drive
Based on customer request, the sliding watertight door can also be electrically driven.

Components
1. The major structure of the door is welded with ship steel plates. Some components are of high strength material or stainless steel, and gasket is of neoprene.
2. Hydraulic components are mainly from domestically and internationally well-known brands. Electronic elements are from Schneider Electric or Siemens, and the protection code of electric devices meets the requirement of SOLAS.

A60 Class Introduction
Besides the features above, the A60 class marine hydraulic sliding watertight door also has the function of fire protection, which meets the requirement of IMOA.754 (18) and part 3 of “International Code for Application of Fire Test Procedures (FTP)". A fire resistance test (Type approval test) is carried out for the controlling device of the A60 watertight sliding door according to part 4 and appendix of “International Code for Application of FTP".

A0 Class Marine Hydraulic Sliding Watertight Door
Specifications
No. Clear size Cut size of bulkhead Outline size Weight(kg)
1 600×1200 800×1400 1720×1480 765
2 600×1400 800×1600 1720×1680 815
3 700×1400 900×1600 1920×1680 872
4 700×1600 900×1800 1920×1680 920
5 800×1600 1000×1800 2120×1880 980
6 800×1800 1000×2000 2120×2080 1020
7 900×1800 1100×2000 2320×2080 1100
8 900×1900 1100×2100 2320×2180 1160
9 1000×2000 1200×2200 2520×2280 1230
10 1200×2000 1400×2200 2920×2280 1350
A60 Class Marine Hydraulic Sliding Watertight Door (Fire Protection)
Specifications
No. Clear size Cut size of bulkhead Outline size Weight(kg)
1 600×1200 800×1400 1760×1500 870
2 600×1400 800×1600 1760×1700 920
3 700×1400 900×1600 1960×1700 990
4 700×1600 900×1800 1960×1900 1030
5 800×1600 1000×1800 2160×1900 1080
6 800×1800 1000×2000 2160×2100 1130
7 900×1800 1100×2000 2360×2100 1190
8 900×1900 1100×2100 2360×2200 1240
9 1000×2000 1200×2200 2560×2300 1350
10 1200×2000 1400×2200 2960×2300 1510

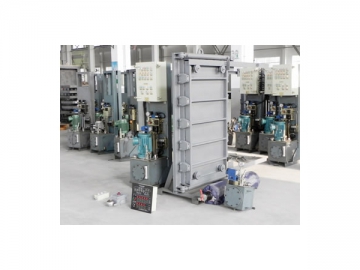

Workshop
