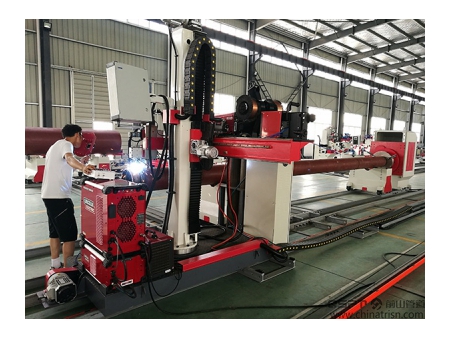

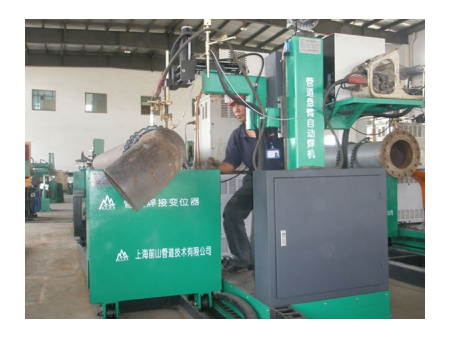

Automatic Piping Welding Machine (GTAW, Cantilever)
Request a Quote
Model: PPAWM-24Cb
Technical Parameters- Pipe Diameter Applicable: DN50-600(φ60-610)
- Pipe Wall Thickness Applicable: 1-10MM
- Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
- Welding Line Applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.

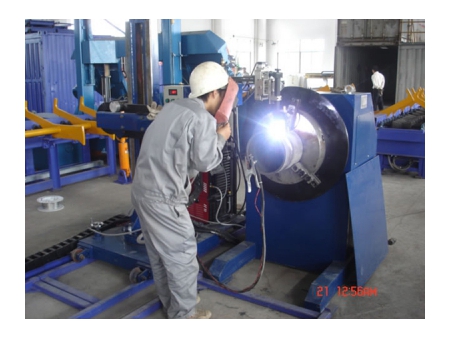

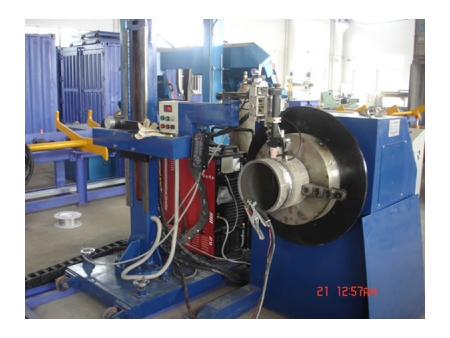

- Driving System: Pipe welding positioner is used, clamped pipe by 2 (or 3, 4) jaw chuck and drive it by positioner directly/pipe welding driving machine is used, clamped pipe and drive it by chain directly
- Trolley System: A welding system is fixed on the arm of the trolley which can move along the track according to the welding location while its arm can be adjusted 180 degrees electrically
- Bracket System: Separate type of trolley matching for welding machine which may be adjusted along the track according to the length of the pipeline
- Speed Regulation Mode: VF stepless speed control system
- Adjustment Mode: Manual cross regulator
- Oscillating System: A product of our patented technology, driven by step motor
- Control System: A product of our patented technology, PLC control
- Welding Procedure: (GTAW/TIG)
- Welding Power: OEM products in China (or as per customers' demands)
Applications
The automatic piping welding machine is used for welding the thin wall pipes or the cover which needs high quality welding.
- The automatic piping welding machine offers a low welding capacity (100-200 inch/day).
- The machine is easy to operate.
- The automatic piping welding machine offers excellent surface finishing.
- It offers a welding compliance rate (without re-working for the skilled operator).
- The automatic piping welding offers extremely good driving reliability (mechanical clamping for the position changing of the pipe welding and forceful driving).
