Description

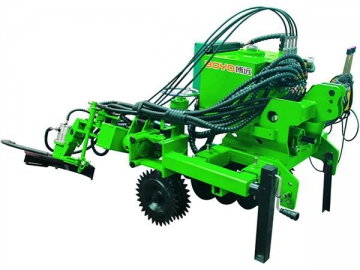

The 9GY-50 hydraulic control orchard mower is a new, suspended orchard mower equipped with an function for overcoming obstacle. It can mow between rows of various orchard plants, and with an adjustable mowing angle, tillage height and space detection, the mowing of different rows and angles is achieved.
This orchard mower is widely used for mowing and pruning in orchards, gardens, meadows, grasslands, green fields and other fields.
Main technical parameters
| Item | Unit | 9GY-50 |
| Matching tractor | horsepower | 60-80 |
| Min. Row spacing | Cm | 220 |
| Min. plant spacing | Cm | 70 |
| Mower cutter radius | Cm | 50 |
| Weight | Kg | 430 |
| Control system | Hydraulic control | |
| Suspension type | Rear 3-point suspension | |
| L×W×H | Mm | 1900×2060×1040 |
| | ||
9GY-50 orchard mower features

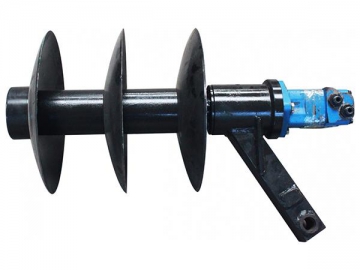

- The mowing cutter can be replaced by a three disc offset plough in order to achieve soil loosening and tillage under trees, making it a versatile tool.

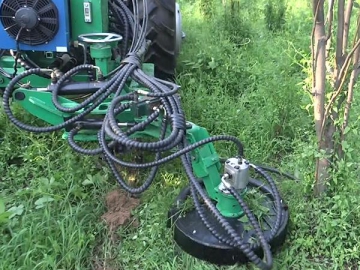

- This mower operates between the rows of the crops on either sides of the driving direction, thus avoiding damage to both the farming equipment and the crops.
- Using hydraulic control and adjustable mowing angle, lateral tilling distance, tillage height and plant row pitch, this machine can mow grass in various row spaces and angles.
- The mowing effect is outstanding, with a high working efficiency.
