3WFX Series Air Blast Sprayer

3WFX Series Air Blast Sprayer
3WFX Series Air Blast Sprayer
3WFX Series Air Blast Sprayer
3WFX Series Air Blast Sprayer
Request a Quote
Description

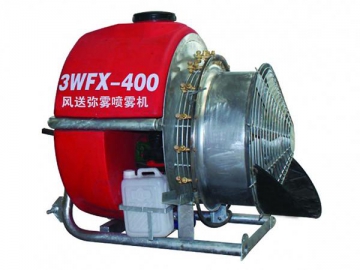

The 3WFX-400 air blast sprayer can be used in conjunction with a 40-100 horsepower tractor, and features a reasonable structure to meet the requirements of various spraying operations.

This air blast sprayer has 12 nozzles, giving it a high spraying efficiency. In addition, the air inlet is equipped with a balance guiding device with uniform spraying, strong penetrability and no deposition of pesticide chemical.

Main technical parameters
Item Unit 3WFX-400 3WFX-600
Pesticide tank volume L 400 600
Pesticide tank material
PE plastics PE plastics
Diaphragm pump displacement L/min 79-75 75
Axial fan diameter mm 710 810
Nozzle number Nozzle 12 12
Horizontal range (one-sided) m 6-8 6-8
Matching power horsepower 40-60 50-100
Working pressure Mpa 1.0-2.5 4
Total weight kg 210 300
Overall size (L×W×H) mm 1450×1135×1240 1450×1200×1350
Features of 3WFX series air blast sprayer
  • This blast sprayer uses a copper nozzle with a built-in wear-proof ceramic spray tip. The spraying angle can be finely adjusted and the nozzle aperture can be quickly switched. It is also equipped with an anti-drip valve.
  • The sprayer is equipped with a powerful fan and a large displacement diaphragm pump, and the air inlet is equipped with a balanced guiding device. This ensures the sprayer has uniform spraying, strong penetrability and no deposition of pesticide chemicals.

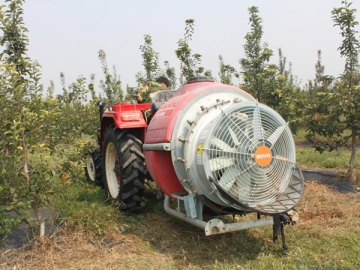

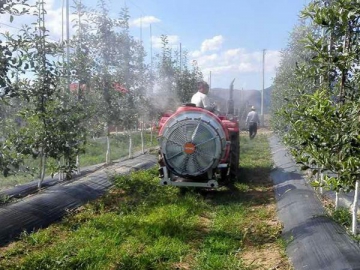

  • This spraying machine can be used together with 40-100 horsepower tractor. With a reasonable overall structure and high cost performance, this machine can satisfy various spraying demands.
  • After installing a tower-type fan, it has a higher spraying height and wider width.
