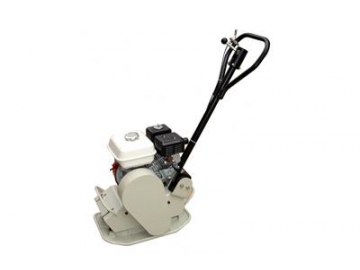

Vibratory Plate Compactor Item VPC95
Request a Quote
Description
- This vibratory plate compactor is suitable for backfill compaction of large areas in municipal engineering and auxiliary vibration or compaction in brick paver installation.
- The water tank is equipped to prevent asphalt from sticking to the bottom of the base plate. This plate compactor can work in sites where the asphalt and backfill soils have high cohesion.
- It is equipped with lifting hook and casters to ensure safe lifting and easy movement. Operation is comfortable and convenient.
- Large centrifugal force and fast working speed make the compaction efficiency higher.
Technical Specifications
| Model | VPC95 |
| Weight(kg) | 95 |
| Travel Speed (m/min) | 20-23 |
| Vibrating Frequency (vpm) | 5800 |
| Centrifugal Force (kgf) | 2050 |
| Base Plate Size(W×L)(mm） | 420×605 |
| Dimensions(L×W×H)(mm) | 1025×420×940 |
| Water Tank Capacity(L) | 13 |
| Engine Fuel | Gasoline |
| Engine Power | 5.5Hp |
| Engine Type | Air-cooled, 4-stroke engine |
