EME08 Carbide, 3 Flute Aluminum Rough End Mills

EME08 Carbide, 3 Flute Aluminum Rough End Mills
EME08 Carbide, 3 Flute Aluminum Rough End Mills
EME08 Carbide, 3 Flute Aluminum Rough End Mills
Request a Quote
  • High performance in machining aluminum alloy, copper alloy, graphite, resin and non-ferrous material
  • 3 Flute roughing tooth profile to reduce cutting forces
  • Special tool geometry for high feed rate and heavy cutting
  • Rougher cutting

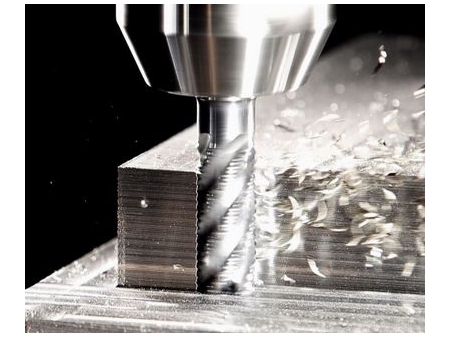

Application
Product Specifications
Coating Non-Coated or TiN, TiCN & TiAIN Work Material Aluminum Alloy / Copper Alloy / Graphite / Resin
Helix Angle 45° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Solid Carbide End Mill for Aluminum, 3 Flute, Rougher Tools (UNT-EME08)
Unit: mm
UNT EDP # Click to Order Mill Dia.
D1
Shank Dia.
D2
Flute Length
L1
O.A.L.
L2
Flutes
EME0805050 5.0 6 13 50 3
EME0806050 6.0 6 16 50 3
EME0808060 8.0 8 20 60 3
EME0810075 10.0 10 25 75 3
EME0812075 12.0 12 30 75 3
EME0814100 14.0 14 40 100 3
EME0816100 16.0 16 40 100 3
EME0820100 20.0 20 40 100 3

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.

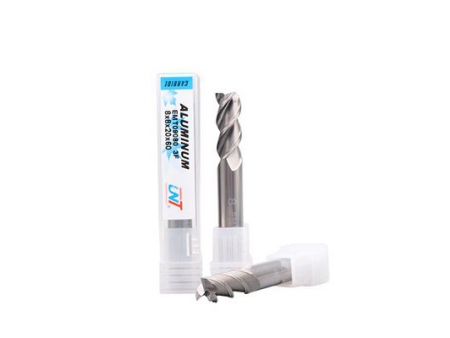

Related products
