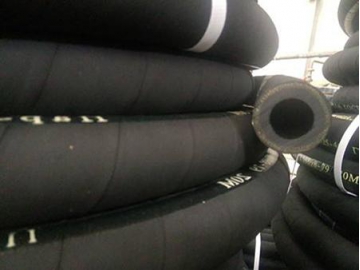

Abrasion Resistant Hose

Abrasion Resistant Hose
Request a Quote

    The abrasion resistant hose is a kind of conveying hoses and is designed for conveying materials with large friction coefficient, which requires the hoses to have ultra-high abrasion resistance. The inner rubber of hose adopts abrasion-resistant NBR. But the abrasion resistant hose doesn't need to bear high pressure and 12BA can be considered as the high pressure.

    Structure
    • Outer rubber layer: SBR/NR mixed conductive rubber
    • Inner rubber layer: NBR highly abrasion resistant rubber
    • Reinforcement layer, high-strength woven cords. Duratech abrasion-resistant hoses adopt double layer woven cords.

    According to the working conditions, the abrasion level of transporting particles caused to the hoses, the abrasion-resistant hoses can be divided into light-weight abrasion resistant hose, heavy-duty abrasion resistant hose and vacuum abrasion resistant hose.

    Light-weight abrasion resistant hose
    Widely used in applications like sand blasting. Inner rubber adopts abrasion resistant NBR and outer layer is covered by compound rubber.

    Heavy-duty abrasion resistant hose
    Ideal for sand, grit, grait and slurry blasting equipment.

    Vacuum abrasion resistant hose
    Embedded spiral steel wires. Vacuum negative pressure up to 0.9BA.

    Specifications
    DN Inches I.D (mm) O.D(mm) Max.W.P Min.B.P Min.B.R
    Min Max Min (Mpa) (Mpa) (mm)
    16 5/8 15.8 16.6 29.0 1.0 4.0 105
    19 3/4 18.8 19.8 35.0 1.0 4.0 130
    25 1 24.8 25.8 44.0 1.0 4.0 150
    32 1 1/4 31.6 32.6 50.0 1.0 4.0 190
    38 1 1/2 37.7 38.8 59.0 1.0 4.0 240
    45 1 3/4 44.6 45.6 64.0 1.0 4.0 260
    51 2 50.7 52.0 71.0 1.0 4.0 300
    64 2 1/2 63.7 65.3 85.0 0.8 3.2 800
    76 3 75.5 77.3 102.0 0.8 3.2 920
    89 3 1/2 88.5 90.5 115.0 0.8 3.2 1100
    102 4 101.5 104.0 128.0 0.8 3.2 1300
