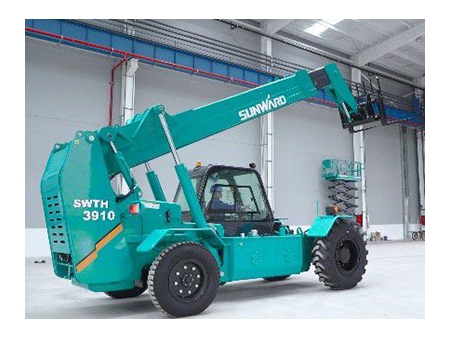

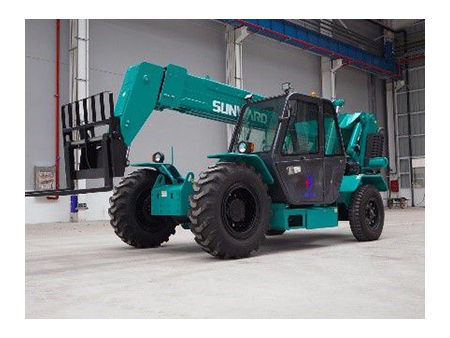

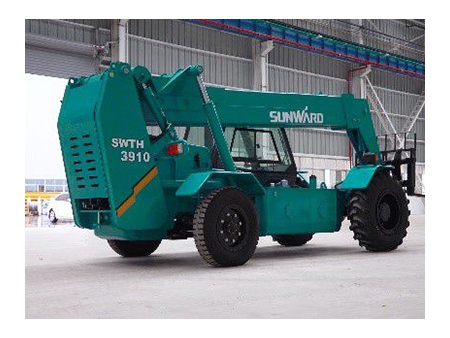

Telescopic Handler SWTH3910
- Max. lifting height: 10.2m
- Max. lifting capacity: 4000kg
- Engine power: 73.6kW
Telescopic Handler, SWTH3910
Request a Quote
Specially designed twin luffing cylinders, large-sized front all-terrain tyres and removable outriggers help the telehandler stay stable;
Self leveling function allows the attachment mounted on the end of the boom such as fork to be automatically leveled as the boom raises or lowers, significantly shortening operating cycle time, ensuring high operating efficiency and safe working condition, while avoiding serious injuries or damages caused by operator's misoperation;
Spacious operator's cab offers optimal visibility, and automatic air conditioner is equipped to maximize driving comfort;
Mechanical control lever and rocker switches are easy to use;
Large screen display shows all parameters of the telescopic handler, alarm function is available;
Performance Parameters
| Dimension (L×W×H) | mm | 7215×2320×2450 | |
| Basic parameters | Machine weight (unladen) | kg | 10600 |
| Rated load capacity | kg | 4000 | |
| Max. handling height | m | 10.2 | |
| Max. overhang length | m | 5.2 | |
| Max. overhang length load | kg | 2000 | |
| Ground clearance | mm | 300 | |
| Turning radius (outside) | m | 5.06 | |
| Traction | KN | 40 | |
| Performance | Boom raising speed | s | 9 |
| Boom lowering speed | s | 10 | |
| Boom retracting speed | s | 14 | |
| Boom extending speed | s | 12 | |
| Transmission system | Transmission mode | Hydrodynamic transmission | |
| Gear (forward and reverse) | 2/2 | ||
| Max. traveling speed | km/h | 36 | |
| Gradeability | % | 30 | |
| Engine | Brand | Yuchai | |
| Model | YCD4J23T8-100 | ||
| Power | 73.6/2200 | ||
| Max. torque | N.m/rpm | 380/ ≤1650 | |
| Fuel injection mode | Electronic fuel injection | ||
| Cooling mode | Water cooling | ||
| System capacity | Hydraulic oil | L | 180 |
| Fuel | L | 140 | |
| Engine oil | L | 7.5 | |
| Cooling system | L | 15 | |
| Fork | L×W×T | mm | 1220×125×50 |
| Max. distance between forks | mm | 1200 | |
| Rotation angle | ° | 117 | |
| Tyre | Front wheel specifications | 15.5-25-16PR | |
| Rear wheel specifications | 9‘00-20-11PR | ||
Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
