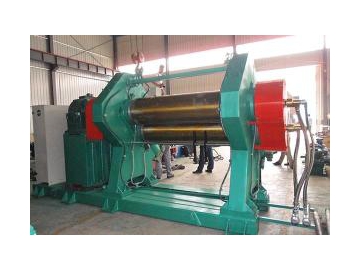

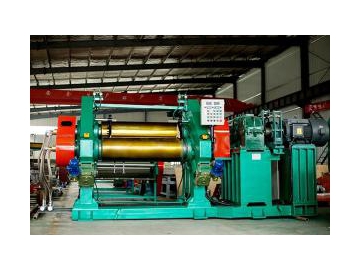

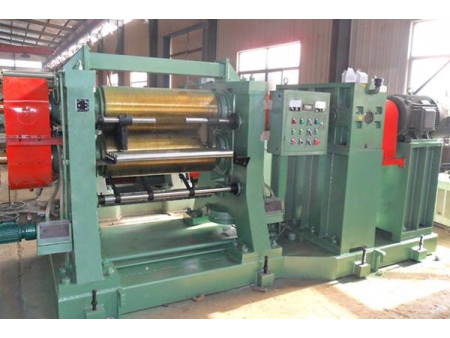

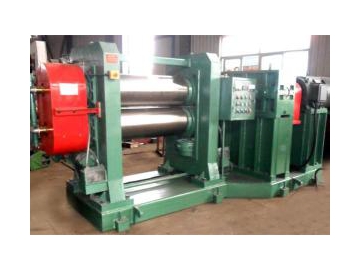

Two Roll Rubber Calendering Machine

Two Roll Rubber Calendering Machine
Two Roll Rubber Calendering Machine
Two Roll Rubber Calendering Machine
Two Roll Rubber Calendering Machine
Two Roll Rubber Calendering Machine
Request a Quote

Application
The two roll rubber calendering machine is commonly utilized by rubber and rubber product manufacturers for the production of tires, cables, hoses, belts, and many other products. The machine works to calender rubber sheets so that they can be further processed.

Product parameters
Items XY-2I 320
Roller diameter 160
Working length 320
Roller speed ratio 1:1
Roller linear speed r/min 7.79
Adjusting range 0-4.5
Product minimum thickness 0.2
Product width mm 250
Motor power kW 5.5
Dimension L mm 2200
W mm 530
H mm 1470
Weight t ~1.2
Items XY-2I 630
Roller diameter 230
Working length 630
Roller speed ratio 1:1
Roller linear speed r/min 14.8
Adjusting range 0-5.5
Product minimum thickness 0.2
Product width Mm 580
Motor power kW 15
Dimension L mm 3100
W mm 770
H mm 1590
Weight t ~3
Items XY-2I 900
Roller diameter 360
Working length 900
Roller speed ratio 1:1
Roller linear speed r/min 3-20.2
Adjusting range 0-10
Product minimum thickness 0.2
Product width Mm 920
Motor power kW 37
Dimension L mm 5330
W mm 1542
H mm 1681
Weight t ~14.5
Items XY-2I 1500
Roller diameter 450
Working length 1500
Roller speed ratio 1:1
Roller linear speed r/min 2.5-24.8
Adjusting range 0-10
Product minimum thickness 0.2
Product width Mm 1250
Motor power kW 45
Dimension L mm 7113
W mm 1595
H mm 2446
Weight t ~22
Items XY-2I 1830
Roller diameter 550
Working length 1830
Roller speed ratio 1:1.08
Roller linear speed r/min 2-18.7
Adjusting range 0-12
Product minimum thickness 0.2
Product width Mm 1600
Motor power kW 75
Dimension L mm 7420
W mm 1760
H mm 2760
Weight t ~24

Product description
1. The two roll rubber calendering machine is equipped with Swedish SKF bearings to guarantee calendering accuracy.
2. High accuracy, wear-resistance with minimal noise.
3. Labyrinth seal with thin oil lubrication to prevent oil leakage.
4. The integrated base prevents severe vibration. In addition, such a design does not necessarily need foundation. The machine can be moved freely on a flat surface.
5. The machine is equipped with a scram button and kick switch for safety functionality.
6. Electronic control cabinet is placed on the base which provides convenience for adjustment and installation. Once connected with dynamic power, cooling water and lubrication oil for the reducer, the mill can begin operation.

Our advantages
1. Shun Cheong considers the end user from each process of production from design, manufacturing and maintenance of the two roll rubber calendering machine. For example, the assembly and installation of the two roll calendering machine usually takes 6 days and 7 processes, while the new one takes only 3 hours and 4 processes.
2. Shun Cheong manufactures about 40 pieces of different types of rubber calender machines every year and we provide custom services to meet client demands.
