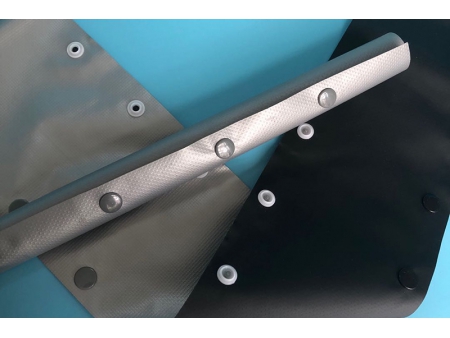

PVC Button Wrap
Request a Quote
Material: PVC POM
Thickness: 0.35mm
Color: Black Gray
Application: Cable protection
Function: bundle and protect wires, conveniently installed and uninstalled, reusable Working temperature: -15℃~ 60℃
Tear strength: widthwise: 65.7N, longitudinal: 56.3N
Tensile strength: widthwise: 727N, longitudinal: 921N
Extensibility: widthwise: 22%, longitudinal: 20%
1-second 6kV voltage, no flashover or breakdown
| Model | Width(mm) | Bundle diameter(mm) | Length | |
| HPC-10 | 57 | 10 | 50m | |
| HPC-15 | 75 | 15 | ||
| HPC-20 | 90 | 20 | ||
| HPC-25 | 100 | 25 | ||
| HPC-30 | 115 | 30 | ||
| HPC-40 | 146 | 40 | ||
| HPC-50 | 175 | 50 | ||
| HPC-70 | 241 | 70 | ||
| HPC-100 | 333 | 100 |
