Product Description
1. Diesel Engine (50Hz, 1500rpm)
Standard for radiator mounted on skid
Fans are driven by belt, with safety guard
12V/24V charge alternator
Engine battery with battery charger, loose silencer, elbow pipe, supplied with expansion joint
Dry air filter, fuel filter, oil filter
Standard tool kit

2. Brushless Alternator
Single bearing AC brushless alternator
P23, insulation class H, with AVR

3. Mainline Circuit Breaker

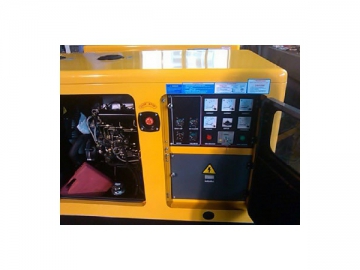

Manual control panel with meters and smartgen protection HGM180HC;
Standard 3P circuit breaker for overload and short circuit protections

4. Genset Controller
8 to 10 hours base fuel tank
Absorber and muffler

Technical Parameters of Rainfine Diesel Generator

Technical Parameter of Diesel Generating Set	GENSET		GFS-8KW	GFS-10KW	GFS-12KW	GFS-15KW
	Rated Power	kw	8.0	10.0	12.0	15.0
	Apparent Power	kva	10.0	12.5	15.0	18.8
	Standby Power	kw	8.8	11.0	13.2	16.5
		kva	11.0	13.8	16.5	20.6
	Rated Voltage	v	110~480v
	Power Factor	Cos Φ	0.8
	Rated Speed	rpm	1500
	Phase		3
	Rated Frequency	Hz	50
	Fuel tank	hours	8~10
	Packing Dimension (packing)	mm	1700×900×1130	1700×900×1130	1800×900×1130	1800×900×1130
	G/Weight (packing)	kg	640	690	740	760

Diesel Engine	Engine Model		Y380D/10KW	YD480D/14KW	YD485D/15KW	YND485G/17KW
	Rated Power	KW	10	14	15	17
	No. of Cylinder		3	4	4	4
	Configuration		Vertical, in-line, water-cooled, four stroke, direct injection
	Bore×Stroke	mm	80×90	80×90	85×90	85×95
	Compression Ratio		18
	Displacement	L	1.357	1.809	2.043	2.156
	Fuel Consumption	g/kw.h	247	245	245	245
	Firing order		1~3~2	1~3~4~2
	Starting System		electric start with batter
	Lubrication method	L	Splash, pressure
	Net weight	kg	165	195	200	200
	Dim. L×W×H	mm	587×494×610	687×494×610	687×494×623	687×494×623
	Steady regulation	%	less than 4
	Exhaust Temperature	^oC	less than 550
Alternator	Alternator Model		YHG-8KW	YHG-10KW	YHG12KW	YHG-15KW
	Rated Power	kw	8	10	12	15
		Kva	10	12.5	15	18.75
	Bearing		single bearing
	Excitation Type		brushless
	Cooling		Fan Cooling
	Material		100% Copper wire, Cold rolled steel stator and rotor, steel frame, cast iron cover, import ball bearings
	AVR		SX460
	IP		23
	Protective Grade		H

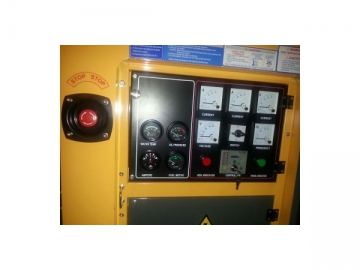

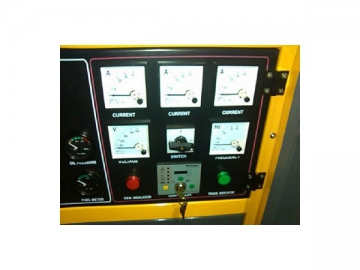

CONTROL SYSTEM	MANUAL CONTROL PANEL WITH SMARTGEN BRAND PROTECTION MODLE.HGM180

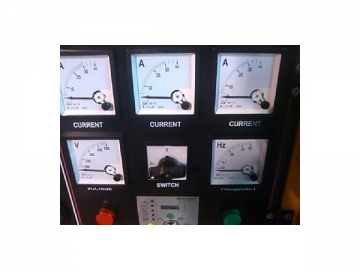

			1. Water temp meter 2.oil pressure meter 3.ampere meter 4. fuel meter 5.current meter 6.current 3 phase switch 7.voltage meter 8.voltage 3 phase switch 9.frequency meter 10. Smartgen HGM180HC protection.
