Inert gas protection device

Working Principle of the Inert Gas System

The inert gas fire protection system produces a high concentration (97%) of nitrogen gas, which fills the inert storage cabinet with a nitrogen concentration of 92% - 95%, ensuring that oil with a low flash point and flammable or explosive materials are in a relatively safe environment.

Technical Parameters of the Inert Gas System
Nitrogen generation 12.9m3/h (97% concentration) under atmosphere pressure
Required time for nitrogen filling to target concentration 15 min. for single cabinet (Concentration of oxygen down from 21% to 5%)
Nitrogen charging interval ≥ 4 hours
Control range of O2 content in inert gas storage cabinet 5% ~ 8%
Power requirement 3-phase 380±10%, 50Hz±5%
Total power 8kW
  • Air conditioning all-in-one
  • Air compressor and cooling machine module
  • Inert gas storage tank

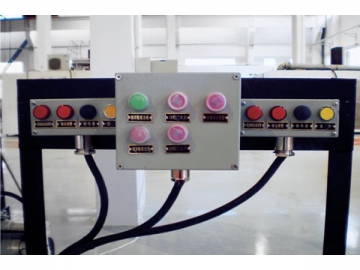

  • Remote indication box and integrating alarm repeater
