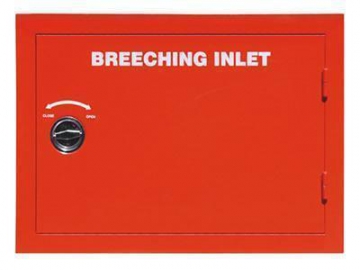

Breeching Inlet Cabinet
Request a Quote
Suit for house in the dry riser inlets and protect the equipment away from dust,water,and misoperation.
SpecificationBackbox,door of1.2mm mild steel sheet,or SS

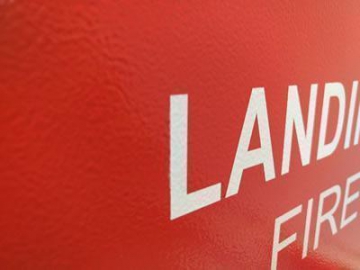

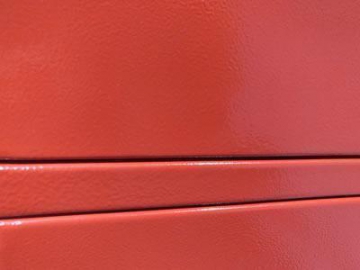

Red epoxy powder coated finish
Stainless steel key round lock with round bar hinges
Wall mounted or recessed
Front Pexiglass, Printing words upon to the request

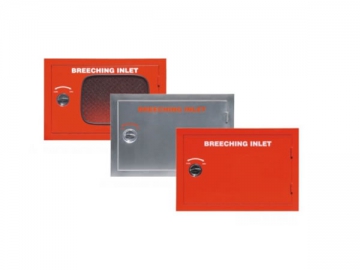

| No. | Type | Dimension (width*height*depth) | Material | Assembly |
| 1 | Surface or recess | 600*400*300mm | Mild steel or Stainless steel or with Pexiglass | 2 way horizontal flange type breeching inlet |
| 2 | Surface or recess | 600*600*300mm | Mild steel or Stainless steel or with Pexiglass | 4 way horizontal flange type breeching inlet |
| 3 | Surface or recess | 470*670*300mm | Mild steel or Stainless steel or with Pexiglass | Landing valve Flanged |
Product Readme
IRON MAN Dry riser inlets cabinet size can be reduced and amended to accommodate the different equipments as per requirement. It also provides the specified assurance in maintaining the integrity of the wall penetration and in meeting building code specifications
