Scaffold Modular Horizontal

Scaffold Modular Horizontal
Scaffold Modular Horizontal
Scaffold Modular Horizontal
Request a Quote

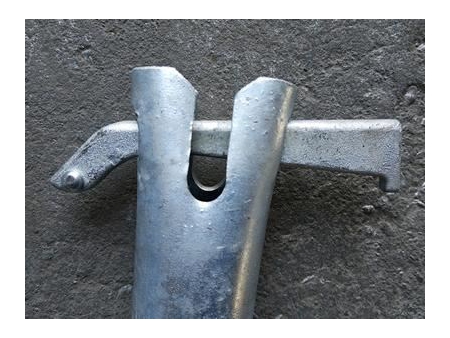

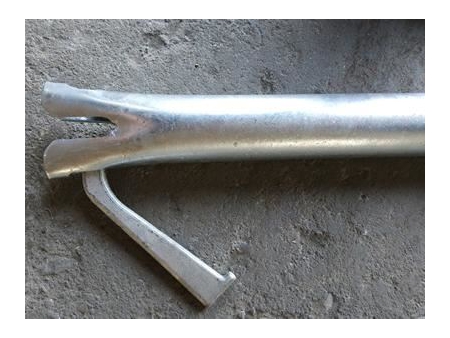

Scaffold Modular horizontal braces provide supporting force in the entire Modular system. The rather short horizontal braces can not only provide horizontal support the steel planks, but also be used as guardrails. To assemble, workers just need to push both ends of the horizontal braces into the holes on the rosettes of posts and knock them until they are fixed. The horizontal braces can conveniently connect with posts and form the units of Modular scaffold system with posts and diagonal braces.

Surface treatment

Hot galvanizing

Material

Q235 or Q345

Specification
Item No. Description Weight (kgs) Package Unit (Pcs)
QH3 3' Horizontal Modular 8 1000
QH4 4' Horizontal Modular 10.3 1000
QH5 5' Horizontal Modular 12.6 1000
QH6 6' Horizontal Modular 14.9 1000
QH7 7' Horizontal Modular 17.1 1000
QH8 8' Horizontal Modular 19.4 1000
QH9 9' Horizontal Modular 24 1000

If you are interested in our products, we would like to inform you in details personally, via an e-mail, so do not hesitate to .
