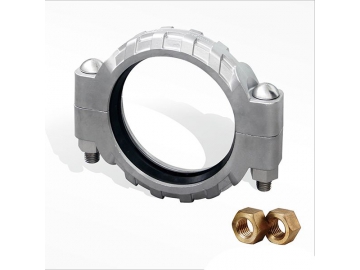

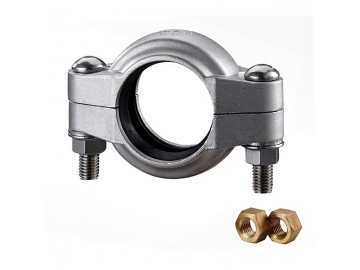

The model 97HP stainless steel flexible coupling is designed for high pressure applications including reverse osmosis and desalination systems. To adapt the special environment, the housing materials are made from high strength and corrosion resistance material of duplex CD3MN (2205) and super duplex steel CE8MN, CE3ME (2507). The bolts are made from 316L stainless steel and the heavy duty nuts are made of silicon bronze to help prevent galling during repetitive use.

  • Size: 3/4"to 12" (DN20 to DN300)
  • Rated working pressure: 1200 psi (83 bar)
  • Only for SCH 80 groove pipe

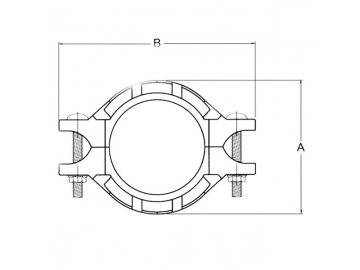

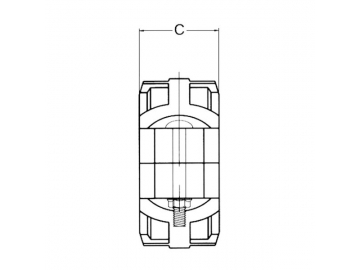

Nominal Pipe Rated Working Pipe End Dimensions
Size OD Pressure Separation A B C
mm in mm in psi bar mm in mm in mm in mm in
20 0.75 26.70 1.050 1200 82.68 0-1.6 0-0.06 53 2.087 86 3.386 44 1.732
25 32.00 1.260 1200 82.68 0-1.6 0-0.06 59 2.323 91 3.583 44 1.732
25 1 33.40 1.315 1200 82.68 0-1.6 0-0.06 60 2.362 93 3.661 44 1.732
32 38.00 1.496 1200 82.68 0-1.6 0-0.06 70 2.756 100 3.937 44 1.732
32 1.25 42.20 1.660 1200 82.68 0-1.6 0-0.06 72 2.835 102 4.016 44 1.732
40 1.5 48.30 1.900 1200 82.68 0-1.6 0-0.06 79 3.110 121 4.764 44 1.732
50 57.00 2.244 1200 82.68 0-1.6 0-0.06 89 3.504 133 5.236 45 1.772
50 2 60.30 2.375 1200 82.68 0-1.6 0-0.06 91 3.583 135 5.315 45 1.772
65 2.5 73.00 2.875 1200 82.68 0-1.6 0-0.06 104 4.094 145 5.709 45 1.772
65 76.10 3.000 1200 82.68 0-1.6 0-0.06 108.5 4.272 152 5.984 45 1.772
80 3 88.90 3.500 1200 82.68 0-1.6 0-0.06 125 4.921 166 6.535 45 1.772
100 108.00 4.250 1200 82.68 0-3.2 0-0.13 154 6.063 197 7.756 52 2.047
100 4 114.30 4.500 1200 82.68 0-3.2 0-0.13 157.4 6.197 207 8.150 52 2.047
125 133.00 5.250 1200 82.68 0-3.2 0-0.13 178 7.008 231 9.094 52 2.047
125 5 141.30 5.563 1200 82.68 0-3.2 0-0.13 192 7.559 248 9.764 52 2.047
150 159.00 6.259 1200 82.68 0-3.2 0-0.13 216 8.504 265 10.433 52 2.047
150 6 168.30 6.625 1200 82.68 0-3.2 0-0.13 227 8.937 282 11.102 52 2.047
200 8 219.10 8.625 1200 82.68 0-3.2 0-0.13 281 11.063 244 9.606 64 2.520
250 10 273.00 10.75 1200 82.68 0-3.2 0-0.13 342 13.465 400 15.748 65 2.559
300 12 323.90 12.75 1200 82.68 0-3.2 0-0.13 397 15.630 478 18.819 65 2.559
DN350 377
400 400
400 426
450 457
450 478
500 508
500 530
1000 630
Material Specification

Optional housing materials:

  • Super duplex 2507 (CE3MN) conforming to ASTM A890 Grade 5A
  • CE8M conforming to ASTM A890 Grade 2A
  • Duplex 2205(CD3MN) conforming to ASTM A890 Grade 4A
  • Austenic 254SMO (CK3MCuN) conforming to A743
  • Austenic 904L (CN2MCuN) conforming to A351
  • Type 316 conforming to ASTMA743 CF8M
  • Type 316L conforming to ASTM A743 CF3M

Rubber Gaskets
The gasket is C-shaped, made of EPDM (ethylene propylene diene monomer). The service temperature range is -50~150℃. It is recommended for used in applications including cold water, hot water, dilute acid, oil-free air and multiple chemical products. Not for use in petroleum applications.

Bolts
Type 316 stainless steel track bolts conforming to ASTM A193 B-8M

Nuts
Silicon bronze heavy duty nuts conforming to ASTM B98 C65100
