Request a Quote

If you are looking for high filter precision and durable filter elements, we recommend a kind of non-woven fabric filter elements for you.

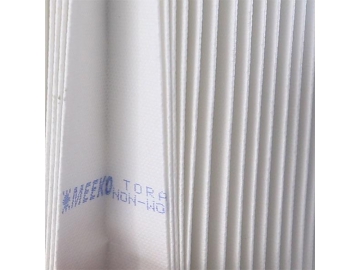

TORAY polyester filter material (All TORAY materials have anti-counterfeit labels) is non-woven fabric made of 100% polyester filament with features of high strength and high density. Filter elements made of this material have small pore size and filter precision of 3-4μm. Compared with other filter elements, TORAY non-woven fabric filter elements have higher filter precision and better air permeability, and their dust removal efficiency can reach 99.9%. According to your practical using conditions, we can also make some processing treatments for TORAY non-woven fabric such as water and oil proof and antistatic treatments to meet your various requirements.

Xin Huan Bao fiter elements adopt TORAY non-woven fabric and are suitable for powder filtration in environmental dust removal equipment, coating equipment, powder spraying equipment, woodworking equipment and blasting equipment. They can be used for the powder recovery of production line manufacturing such as steel plants, furniture and household appliances, boiler dust removal and cement plants.

Parameters
Size (O.D. × I.D.) O.D. 325mm×I.D. 215mm (220mm), Accept nonstandard customization and sample orders
Size (Height) 600mm, 660mm, 900mm, 1200mm
Material TORAY
Dirt holding capacity 260g/m2
Thickness 0.65mm
Bearing back flushing pressure 5-6kg
Airflow rate 100Lm2/sec
Powder recovery rate 99.8%
Filter precision 3-4μm
Collecting efficiency/Filter precision 99.8%/4.5-5μm 99.1%/2-4μm 92.5%/1-2μm
Top and bottom end cap Zinc electroplating

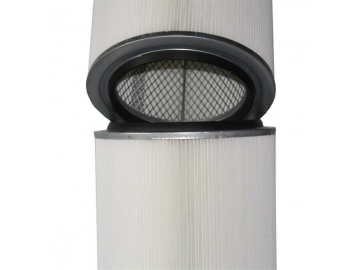

Inside frame diamond mesh Zinc electroplating
Air resistance 2.95mbar When airflow is 70cm/s
Bearing temperature ≤135℃
Tensile strength Kgt/5cm MD126.5 CD73
Features of TORAY non-woven fabric filter elements
  • The service life is 2-3 time as long as that of common filter elements. ( In condition of 8h daily working time)
  • The filter elements can be used at high temperature working environment of ≤135℃.
  • TORAY non-woven fabric can be washed with water and be used repeatedly.
  • The filter elements have excellent chemical corrosion resistance and long service life.
Custom TORAY Nonwoven Fabric Filtration

You can directly choose from the above displayed TORAY Nonwoven fabric filtration. We can also satisfy your any requirements for filter element size, surface treatment method and other aspects, and provide you with custom service for TORAY Nonwoven fabric filtration.

If you want to customize other types of filter elements such as spun bond polyester cartridges, cellulose filter cartridges and flame retardant fiber filtration, you can enter custom page, see custom instructions and provide us with necessary information.
