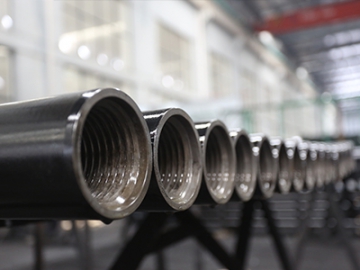

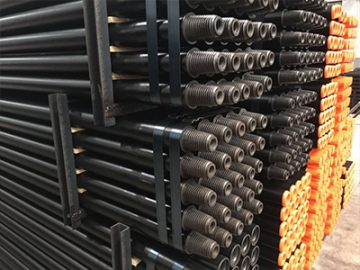

Friction Welded HDD Drill Pipe
  • Different from copper plating and parkerizing, the joint surface of our HDD Drill Pipe (Friction Welded Type) is specially processed to improve the hardness of the thread and the adhesion of the thread grease. Therefore, the occurrence of thread galling and shackle torque can be reduced, accordingly.
  • Since the clamping space is expanded, the trenchless drilling machine positioning and clamping become easier. More importantly, the extended joint can be repaired for the occurrence of worn thread. The drill rod is meticulously designed with special performance for trenchless construction, to reduce the production cost.
  • To maintain the stability of the drilling pipe, this range of boring rod comes with double force-bearing shoulders for the application with high torque and wide angel to decentralize the stress.
Specifications HDD Drill Pipe (Friction Welded Type)
Nominal Dimension Nominal Weight Pipe Joints Torsional Strength Comparison
Material Type of Upset OD(mm) Wall Thickness (mm) Thread Joint OD (mm) Joint ID (mm) Chamber diameter (mm) Pin Joint Power Tong Space LPB(mm) Box Joint Power Tong Space LPB(mm) OD of the welding joints DTE/ DPE(mm)
3 1/2 13.3 R EU 88.9 9.35(11.4) NC31 104.8 50.8 100.41 177.8 228.6 80.96 0.98
G 104.8 50.8 100.41 177.8 228.6 80.96 0.87
S 104.8 41.28 100.41 177.8 228.6 80.96 0.86
4 14 R EU 101.6 8.38(9.19) NC38 127 65.09 116.28 203.2 266.7 98.43 0.97
G 127 61.91 116.28 203.2 266.7 98.43 0.83
S 127 53.98 116.28 203.2 266.7 98.43 0.9
4 1/2 16.6 E IEU 114.3 8.56 NC46 158.8 82.55 145.26 177.8 254 119.06 1.09
X 158.8 72.6 145.26 177.8 254 119.06 1.01
G 158.8 76.2 145.26 177.8 254 119.06 0.91
S 158.8 69.85 145.26 177.8 254 119.06 0.81
20 E 10.92 158.75 76.2 145.3 177.8 254 119.07 1.07
X 158.75 69.85 145.3 177.8 254 119.07 0.96
G 158.75 63.5 145.3 177.8 254 119.07 0.93
S 158.75 57.15 145.3 177.8 254 119.07 0.81
16.6 E EU 8.56 NC50 168.28 95.25 154 177.8 254 127 1.23
X 168.28 95.25 154 177.8 254 127 0.97
G 168.28 95.25 154 177.8 254 127 0.88
S 168.28 88.9 154 177.8 254 127 0.81
20 E 10.92 168.28 92.08 154 177.8 254 127 1.07
X 168.28 88.9 154 177.8 254 127 0.96
G 168.28 88.9 154 177.8 254 127 0.96
S 168.28 76.2 154 177.8 254 127 0.81
5 19.5 E IEU 127 9.19 168.28 95.25 154 177.8 254 130.18 1.23
X 168.28 88.9 154 177.8 254 130.18 0.97
G 168.28 82.5 154 177.8 254 130.18 0.88
S 168.28 69.85 154 177.8 254 130.18 0.81
25.6 E 12.7 168.28 88.9 154 177.8 254 130.18 1.02
X 168.28 76.2 154 177.8 254 130.18 0.96
G 168.28 69.85 154 177.8 254 130.18 0.86
S 168.28 69.85 154 177.8 254 130.18 0.87
19.5 E 9.19 5 1/2FH 177.8 95.25 170.7 203.2 254 130.18 1.53
X 177.8 95.25 170.7 203.2 254 130.18 1.21
G 177.8 95.25 170.7 203.2 254 130.18 1.09
S 184.15 88.9 170.7 203.2 254 130.18 0.98
25.6 E 12.7 177.8 88.9 170.7 203.2 254 130.18 1.21
X 177.8 88.9 170.7 203.2 254 130.18 0.95
G 184.15 88.9 170.7 203.2 254 130.18 0.99
S 184.15 82.55 170.7 203.2 254 130.18 0.83
5 1/2 21.9 E 139.7 9.17 177.8 101.6 170.7 203.2 254 144.46 1.11
X 177.8 95.25 170.7 203.2 254 144.46 0.98
G 184.15 88.9 170.7 203.2 254 144.46 1.02
S 190.5 76.2 180.2 203.2 254 144.46 0.96
24.7 E 10.54 177.8 101.6 170.7 203.2 254 144.46 0.99
X 184.15 88.9 170.7 203.2 254 144.46 1.01
G 184.15 88.9 170.7 203.2 254 144.46 0.92
S 190.5 76.2 180.2 203.2 254 144.46 0.86
6 5/8 25.2 E 168.3 8.38 6 5/8FH 203.2 127 195.7 203.2 279.4 176.21 1.04
X 203.2 127 195.7 203.2 279.4 176.21 0.82
G 209.55 120.65 195.7 203.2 279.4 176.21 0.87
S 215.9 107.95 195.7 203.2 279.4 176.21 0.86
27.7 E 9.19 203.2 127 195.7 203.2 279.4 176.21 0.96
X 209.55 120.65 195.7 203.2 279.4 176.21 0.89
G 209.55 120.65 195.7 203.2 279.4 176.21 0.81
S 215.9 107.95 195.7 203.2 279.4 176.21 0.8
