Combined Shredder and Granulator, NMC ​

Combined Shredder and Granulator, NMC ​
Combined Shredder and Granulator, NMC ​
Combined Shredder and Granulator, NMC ​
Combined Shredder and Granulator, NMC ​
Combined Shredder and Granulator, NMC ​
Combined Shredder and Granulator, NMC ​
Request a Quote

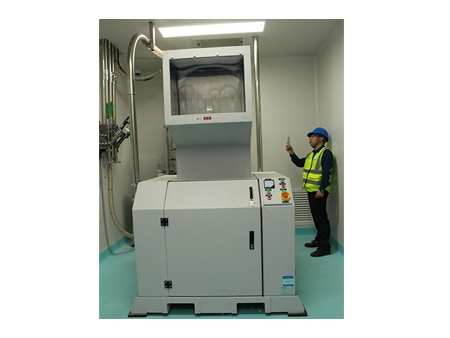

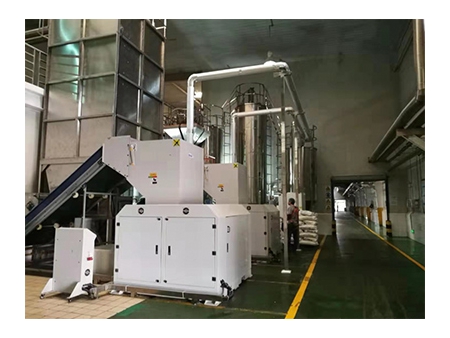

This combined shredder and granulator is designed with a soundproof housing, primarily used for shredding and recycling of rejected products in plastic processing.

Features:
  • Built-in soundproof enclosure, low noise level
  • Simple knife changing, knives are adjusted outside of the machine
  • Rotor and stator knives are made of high strength steel, can withstand for regrinding many times
  • Rotor with V-cut design allows continuous cutting during material conveying
  • Compact structure, the machine can be moved by lifting equipment
Specification:
Model NMC300/300 NMC300/600 NMC300/800 NMC400/600 NMC400/800 NMC500/800
Drive power KW 7.5 11 22 22 30 37
Rotor diameter MM 300 300 300 400 400 500
Rotor width MM 300 585 785 600 800 800
Number of rotor knives 3*1 3*2 3*2 3*2 3*2 3*2
Number of stator knives 2*1 2*1 2*2 3*2 3*2 3*2
Feed opening MM 270*375 425*560 425*760 530*570 550*770 650*770
Shredding chamber size MM 370*300 370*585 370*785 490*600 490*800 600*800
Weight KG 1000 1500 2100 2300 3500 4500
Screen size MM 10 10 10 10 10 10
Blower mounting method Mounted on machine Mounted outside the machine
Dimension MM 1400*1420*2050 1400*1700*2100 1550*1900*2250 1700*1650*2400 1650*1800*2550 1850*1900*2950
