Project: production line of ultrafine heavy calcium carbonate
Time: May in 2010
Place: Linkou in Heilongjiang
Quantities: 50000 t/a production line of ultrafine heavy calcium carbonate (800-1250 mesh)

  • Calcite
  • Calcite
  • Finished powder after processing
  • Finished powder after processing

Cooperation background
Every year, Japan and South Korea import large quantities of calcite from China to be deep processed in their plants. Vostosun provides special solutions for calcium carbonate crushing and grinding depending on the CaCO3 specifications of customers.

Cooperation process
For whiteness, the calcite in Linkou, Heilongjiang is better than other places in China. Vostosun can provide special solutions for 50000 t/a production lines of ultrafine heavy calcium carbonate, delivering fineness in the range of 800-1250 mesh.

Total configuration of production line
The equipment for the production of ultrafine heavy calcium carbonate is excellent in the two ultrafine mineral classification production lines, and the main equipment is a ball grinding mill (2.2×7m). The ball grinding mill is technology redesigned based on improvements of obsolete equipment of cement plants.

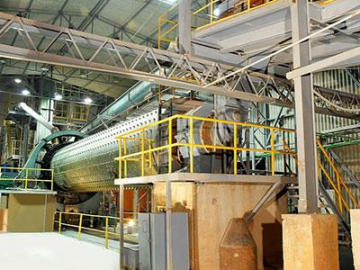

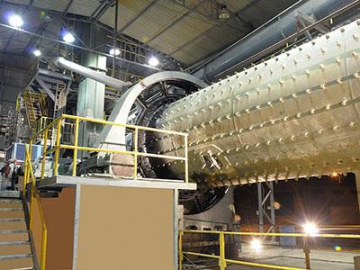

Ball Grinding Mill
NO. Equipment Types Number
1 Stone crushing jaw crusher PE500×750 1
2 Impact crusher 1
3 Bucket elavator TH400 1
4 Frist raw material warehouse 10 m3 1
5 Vibrating Feeder GZ2 1
7 Bucket elavator TH400 1
8 Secondary raw material warehouse 10 m3 1
9 Industrial screw conveyor 1
10 Raw material warehouse 10 m3 1
11 Industrial screw conveyor 2
12 Ball grinding mill φ2.2×7M 2
13 Grinding medium Alloy ball, forging 80 tons
14 Charging system 5L 2 sets
15 Bucket elavator TH200 2
16 Warehouse 5 m3 2
17 Dumper 2
18 Classifying Equipment FJ-ultrafine 4
19 Return spiral 2
20 Pulse jet dust collector 2
21 Air compressor 1
22 High pressure fan 2
23 Bucket elavator TH200 2
24 Products warehouse 5 m3 2
25 Industrial Screw Conveyor 2
26 Packing machine 2
27 Belt conveyor system 2
