| Item | Height | Length | Width |
| Size | 2440 | 2800 | 1600 |
| Item | Parameter |
| Rated capacity (KVA) | 55*2 |
| Power supply (V/φ/HZ) | 380/3 /50 |
| Primary current (A) | 90 |
| Rated duty cycle (%) | 20 |
| Secondary empty voltage (V) | 8.9 |
| Throat depth (mm) | 120 |
| Arm gap (mm) | 380 |
| Cylinder stroke(mm) | 50 |
| Size of electrode (mm) | Φ12 |
| Workpiece Dimensions (mm) | Φ42-Φ60 |
| Welding capacity (mm) | Round wire Φ2~Φ3.5 |

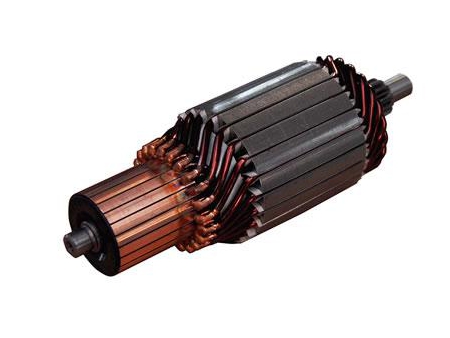

| Welding speed m/min (s/piece)(once/s) | 35S/piece (by 23 groove rotor wire feeding welding) |
| Max. working pressure (kgf) | 100 |
| Compressed air pressure (MPa) | 0.6~0.7 |
| Compressed air consumption(0.4MPa air pressure, stroke:30mm) (L/once) | 3 |
| Cooling water consumption (L/MIN) | 12 |
| Primary cable specification (MM2) | 3*16 2*6 |
| Maximum short circuit current (A) | 18000 |
Feature

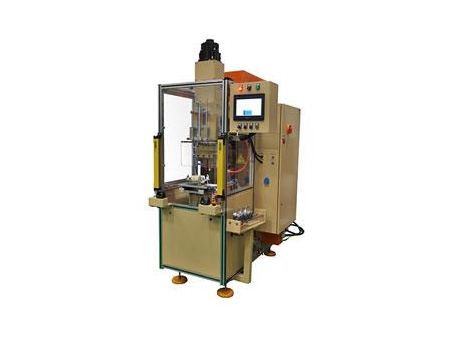

1. The welding system is equipped with a double-headed welding component.
2. It can connect with production lines to facilitate quick loading and unloading of workpieces.
Background information
Welding processes are usually a stand-alone operation in the production of engine motors. Our welding systems feature a double headed welding process and can be installed directly onto the production line for high efficiency performance.
