Industry Leading Company of High Pressure Grinding Rolls

For over 60 years, CITIC Heavy Industries (CITIC HIC) has been upholding its commitment to technical innovation in the mineral processing industry. Backed by years of experience and in-depth knowledge within the field, CITIC HIC has successfully developed high pressure grinding roll (HPGR) suited to meet global customers' needs of safe, reliable, energy-saving and high-efficiency crushing and grinding operaions.

Key Features
  • Reduced feed particle size: in comparison with conventional crushing and grinding equipment, the high pressure grinding roll can reduce breakage size from 10-20mm down to 3mm or below, thus leading to less energy consumption for grinding process.
  • Lowered Bond work index: through high pressure crushing operation, the Bond work index of most minerals can be significantly lowered, some even have gone down by more than 23%.
  • Strengthened tailings disposal operation prior to downstream grinding: magnetite ore processing technique enables a tailings disposal efficiency of up to more than 30%, helping reduce mill load and energy consumption while lowering the wear rate of mill liners and grinding media.
  • Higher efficiency and improved recovery rate: the minerals crushed by high pressure grinding roll have large quantities of microcracks along the grain boundary, these microcracks enable better adsoption on mineral surface which translates to good permeability in the leaching process of difficult-to-treat ores.
Why Choose CITIC HIC's High Pressure Grinding Roll
  • High operating rate
    CITIC HIC has participated in setting China National Standards of high pressure grinding rolls, promoting the development of large-scale high pressure roller mills towards intelligence in the domestic market. CITIC HIC is always focused on maintaining a leading position within the China's mineral processing market by using international advanced design and manufacturing standards.
  • Excellent processing performance
    Good roller compaction effect, high qaulification rate, providing more than 20% stronger force, more than 15% higher qualification rate and more than 10% less energy consumption than of those of competitors in the domestic market.
  • Extremely long life cycle
    Newly designed bearing structure features a lifespan of over 10 years, which is 3 to 5 times the conventional self-aligning bearing. The rolling friction is more evenly and the service life is longer.
  • Serving customers worldwide
    Our high pressure grinding rolls have been exported to a number of countries such as Australia, Brazil and Russia. The reliable equipment performance and our excellent service are particularly appraised by the world's largest iron ore producer – Brazilian Vale SA, Zijin Mining Group, and other high-end customers.
Core Advantage
Selection

Our high pressure grinding rolls can be equipped with finish grinding system, cement combined grinding system, semi-finish grinding system, and more processing systems. Our core database and process simulation software can support the selection of machines and systems. Besides, we have technologies for structure improvement of key units and layout optimization of piping system to ensure that the product performance reaches an advanced level at home and abroad.

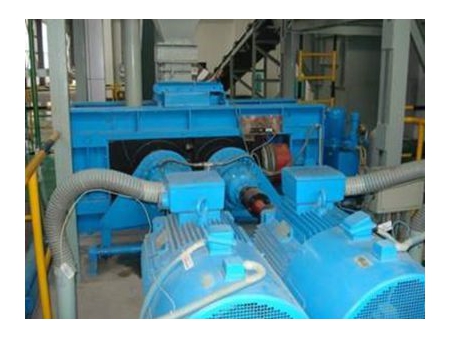

High pressure grinding roll for test

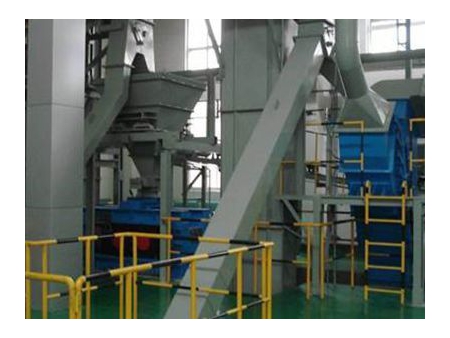

HPGR testing system

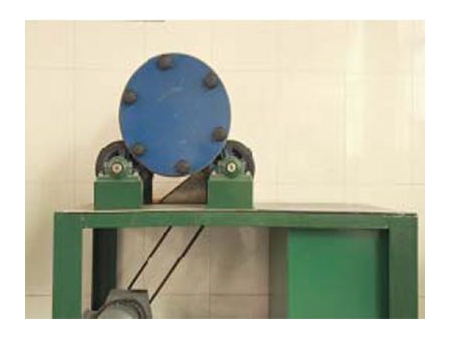

Abrasion tester

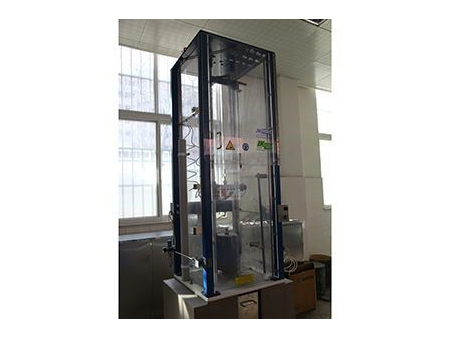

JK drop weight tester (JKDWT)
Strength
Finite element analysis is employed for strength calculation of machine frame, roller shaft, roller shell and bearing seat to identify the optimal structure, and ensure the reliability of the high pressure roller mill.
Roller surface technology
Extremely long service life of roller
Roller body is constructed with high performance forged alloy steel by using 18500t hydraulic press and large-scale forging equipment, ensuring high performance and extremely long service life of rollers.
With a split design of roller shaft and shell, operator can only need to change the roller shell (wear parts) and the roller shaft can be long-term use, thus greatly saving the costs of spare parts.

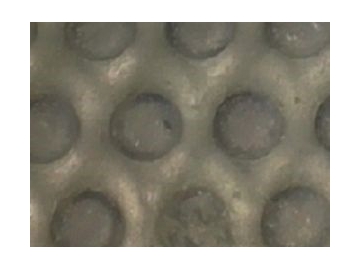

Highly wear-resistant roller surface
Roller surface is protected against wear with hard metal studs that enable particle size to be reduced by compressing and grinding, the service life of roller surface is up to 30,000 hours. Lateral wear blocks and lateral walls are used to reduce wear and seal the working gap at roller edges, therefore providing an optimal compression effect.

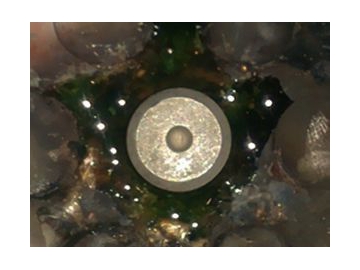

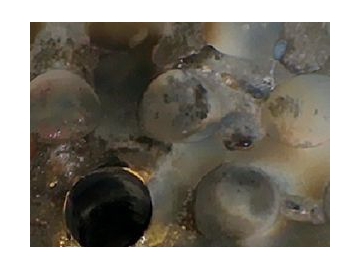

Efficient stud-lined roller surface repairing technology
Independently developed fast stud changing technology allows to replace broken metal pins (studs) in a timely manner, preventing costly production downtimes caused by large fracture surface of studded roller.

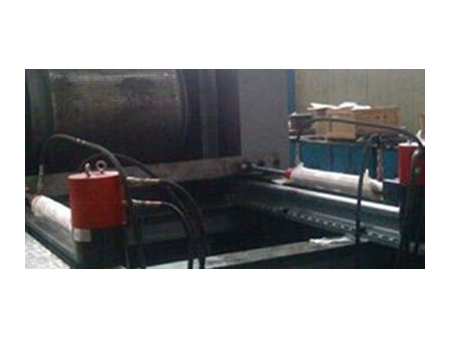

Studded lower side plate
Unlike conventional lower side plate that can only last for 5 days, our studded lower side plate features an extended service life of 3 to 6 months.
Bearing technology

Bearing load distribution and sealing technology
Bearing loads are distributed more evenly and featured by longer service life, enabling the high pressure grinding roll to be operated more stably and reliably.
The sealing structure combines radial sealing, axial sealing and labyrinth sealing methods to assure a tight seal at all times and efficiently prevent dust penetration.

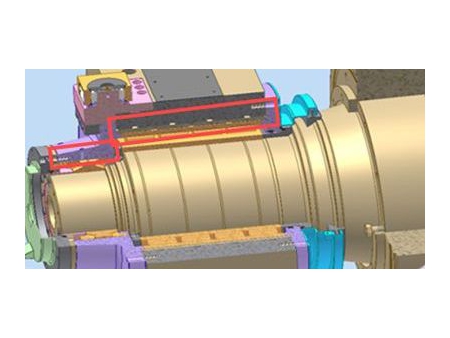

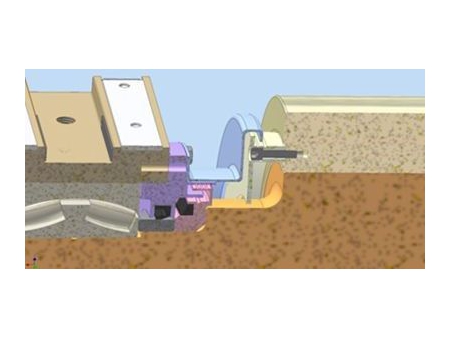

Bearing diassembly technology
Four-row cylindrical roller bearings can be easily disassembled by simply removing a integrated part of bearing seat and outer ring, eliminating the need for dismantling the inner ring thereby greatly facilitating the maintenance operations while efficiently avoiding the risks of bearing failure.

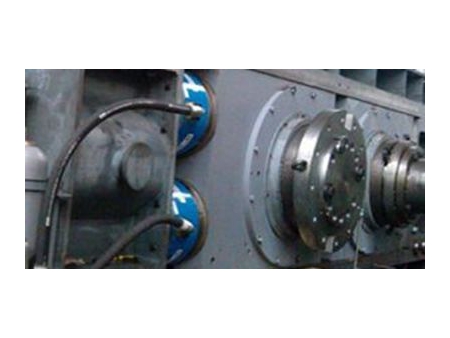

Bearing cooling technology
The operating temperature of the main bearing can be kept at a appropriate temperature, significantly prolonging the service life of the main bearing.


Rapid maintenance technology

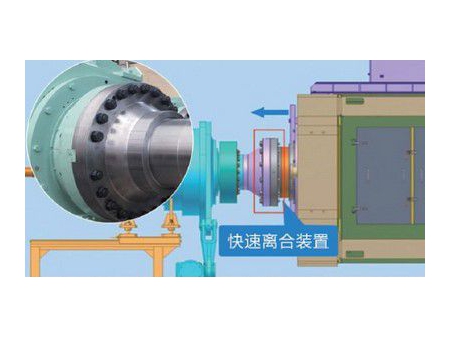

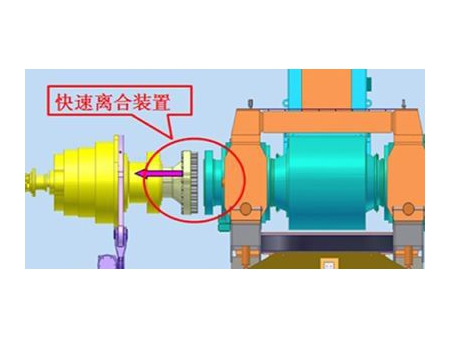

Quick reducer separation
Rollers can be quickly disassembled from the reducer due to the usage of quick coupling, protecting roller shaft and reducer shaft from being damaged, thus saving the cost of spare parts.

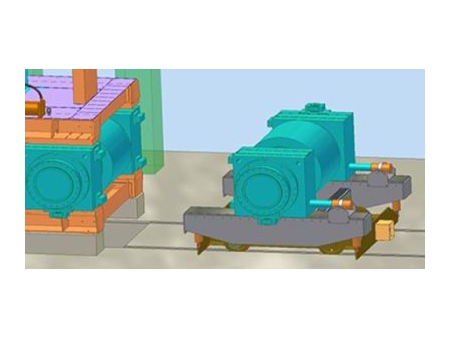

Quick roller changing system
Roller exchange process can be rapidly carried out with quick roller changing unit, which assures safe changing operation while cutting the changing period from original 7 days down to 2 days, as well as greatly saving costs of lifting equipment and civil construction.


Feed system

Surge bin
We have two types of feed surge bins (fixed and movable) for user to choose from. The movable surge bin is powered by motor to travel along the track for easy maintenance with the help of lifting equipment.


Two-sided electrically adjustable feed unit
This feed unit provides the flexible adjustment during material feeding process.
All parts in contact with materials are made with wear-resistant steel plate, enhancing wear resistance.


Control and protection system

Complete protection system
A variety of electronic sensors are used for real-time monitoring of high pressure grinding roll. If any failure occurs, the operator will be immediatelyinformed to solve the issue and ensure the operation at an optimal status.


Metal detection and automatic bypassing system
The design of interlocking control allows metal detector to activate an electric bypass flap gate that diverts the metals to a separate chute, thus preventing the machine damage caused by metals.


Technical Specifications
Model Power Roll diameter Roll width Capacity Dimensions (L×W×H)
kW mm mm t/h mm
GM120-50
2×355 1200 500 180-210 6500×4424×2113
GM120-80
2×500 1200 800 260-340 7627×5710×2340
GM140-60
2×500 1400 600 330-380 7380×5930×2758
GM140-80
2×560 1400 800 390-500 7528×5930×2838
GM140-100
2×630 1400 1000 440-510 8756×5528×2838
GM150-80
2×710 1500 800 420-530 8800×5810×3590
GM140-110
2×800 1400 1100 480-610 10467×5140×3120
GM150-110
2×800 1500 1100 580-730 8400×6110×3590
GM170-110
2×1120 1700 1100 830-980 10700×6915×3745
GM170-120
2×1250 1700 1200 900-1070 9950×6915×3983
GM170-140
2×1400 1700 1400 1050-1200 13415×5725×3330
GM180-160
2×1600 1800 1600 1250-1400 14035×6680×3586
GM200-150
2×1800 2000 1500 1500-1650 14800×6870×3920
GM200-180
2×2500 2000 1800 1900-2100 14900×6960×4120
GM200-200
2×2800 2000 2000 2300-2500 15093×7045×3859
GM240-180
2×3150 2400 1800 2600-2900 15800×7135×4300
GM260-180
2×3550 2600 1800 3000-3300 16500X7650X4420
GM300-200
2×5700 3000 2000 5200-5400 20500X9950X6100

Notes:
  • Detailed values of capacity and infeed material characteristics are associated with processing techniques.
  • The capacities in the above table are calculated on the basis of medium hardness ores with bulk density of 3.5t/m³.
  • Dimensions are for reference only, and subject to our final drawings.
