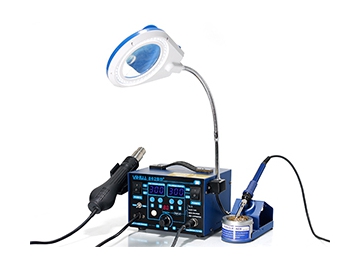

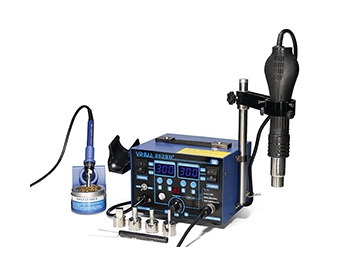

YIHUA-862BD SMD Hot Air Rework Station with Soldering Iron

YIHUA-862BD  SMD Hot Air Rework Station with Soldering Iron
YIHUA-862BD  SMD Hot Air Rework Station with Soldering Iron
YIHUA-862BD  SMD Hot Air Rework Station with Soldering Iron
YIHUA-862BD  SMD Hot Air Rework Station with Soldering Iron
Request a Quote
Features
  • YIHUA-862BD SMD hot air rework station with soldering iron is equipped with the unique ABS fan which has the antilock function. The fan stops working when facing with the abnormal conditions. Additionally, the system will automatically cut off the air gun power, once the temperature is out of control. Consequently, both safe environment and user’s safety can be guaranteed.
  • It is special in layout design. With the airflow digital display, the airflow can be conveniently adjusted. The adjustable range is from 20 to 80.
  • YIHUA-862BD is updated from YIHUA-862D . It is added with the above new features.
Parameter
Machine
Rated Voltage AC 220V±10% 50Hz
Machine Power 730W±10% (max.)
The 300 ℃ Isothermal Power (PID controlled energy saving) 250W ±10%
Working Environment 0~40℃ Relative humidity < 80%
Storage Temperature -20~80℃ Relative humidity < 80%
Machine Size 13.5*15.7*18.5cm
Weight 4.5KG
Parts
Item Hot air gun Soldering iron
Working Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 75W
Temperature Range 100℃~480℃ 200℃~480℃
Mode of Airflow Brushless fan ---
Airflow 120L/min (max) ---
Temperature Stability ±15℃ (static) ±10℃ (static)
Display LED (red/green) LED (red/green)
Temperature Correction PID digital program proofreading PID digital program proofreading
PID Temperature Cycle Fast 200ms Fast 200ms
Heater Heating core ceramics heater Imported high-power heater
Tips to Ground Impedance --- < 2Ω
Tips Voltage to Ground --- < 2mV

Standard Configuration
Machine: 1 set
Specifications: 1pc
Air Gun Handle: 1pc
Nozzles: 4pcs (10mm, 8mm, 5mm, 13mm)
IC Puller: 1pc
Handle Frame: 1pc
Iron Handle (including a heater and tips): 1pc
Iron Holder: 1pc

Application of Hot Air Rework Station with Soldering Iron
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions

Related Names
Surface Mount Soldering Kit | Electronics Desoldering Tool | Micro Soldering Equipment

If you need quick after-sales support


Please don't hesitate to send an email to !

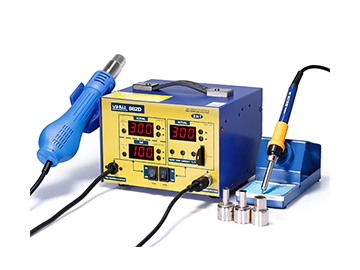

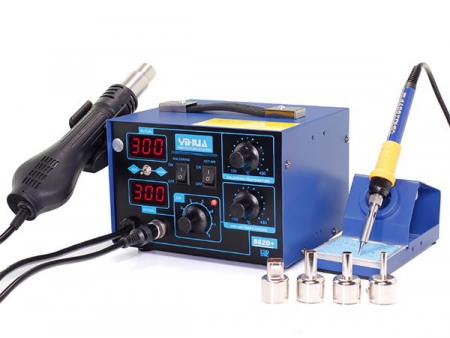

Related products
